Huanghai vehicle lineup
Buses, Trucks & Pickups

SG Automobile

From rugged diesel pickups to zero-emission electric city buses and purpose-built vocational vehicles, SG Automobile (Huanghai) delivers engineering depth and proven reliability for government, public transit, and commercial fleets.

Explore Portfolio

Pickup Trucks

Built for the Long Haul.

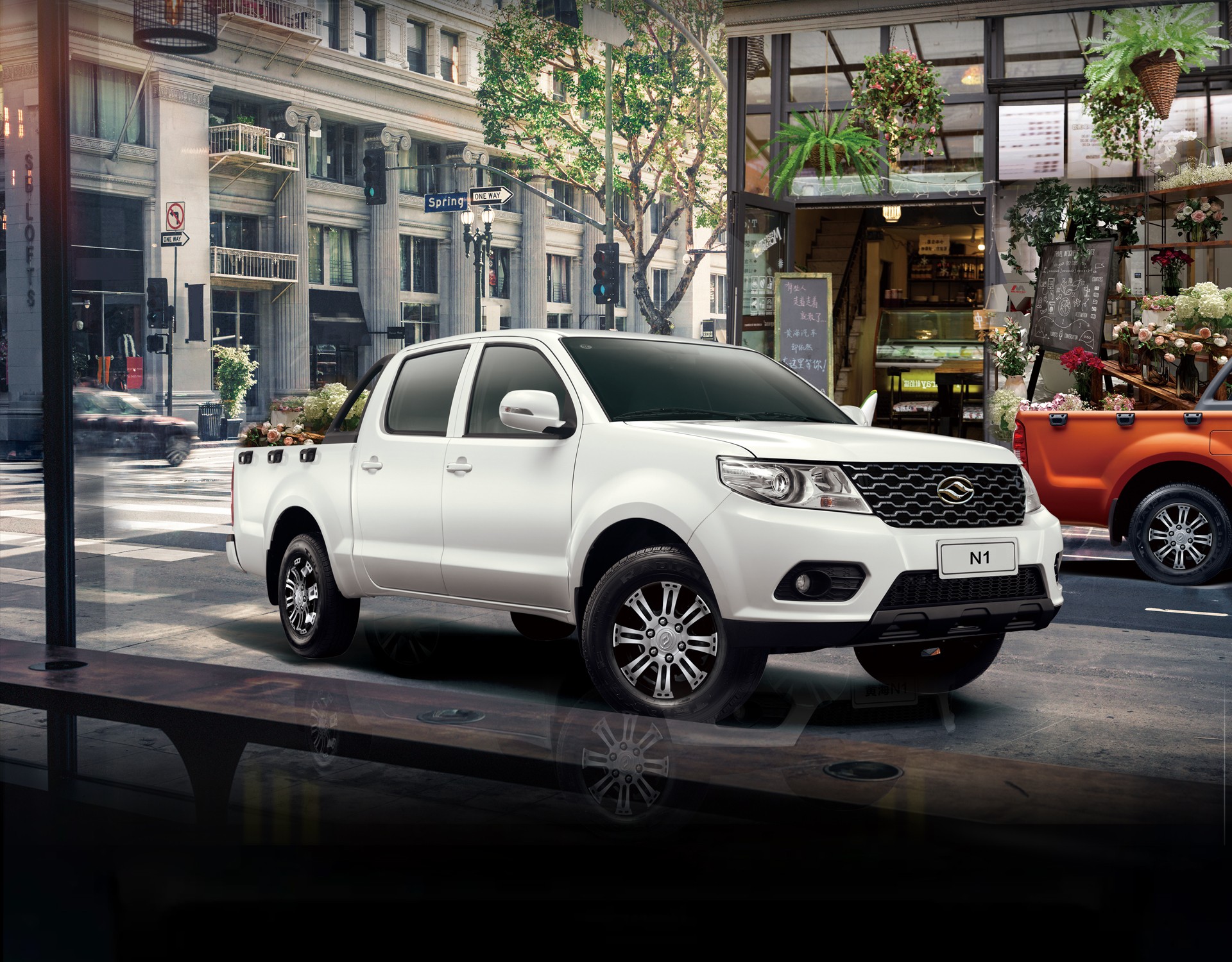

Huanghai Pickup N1
Pickup Truck

Huanghai Pickup N1

Wheelbase (mm)
3385
Wheel Track (fr/rr mm)
1510
Seating Capacity
2+3
Approach / Departure (°)
27/22
Ground Clearance (mm)
215
Max Speed (km/h)
140
Rated Payload (kg)
490
Curb Weight (kg)
1745
GVW (kg)
2560
Drive Mode
Front mounted, 2WD
Engine Model
4K22D4M
Engine Type
Inline, 4 cylinder
Displacement (L)
2.378
Max Power (kW)
118
Max Torque (N·m)
230
Transmission
5MT
Fuel Type
Gasoline
Fuel Tank (L)
70
Tire
235/70R16

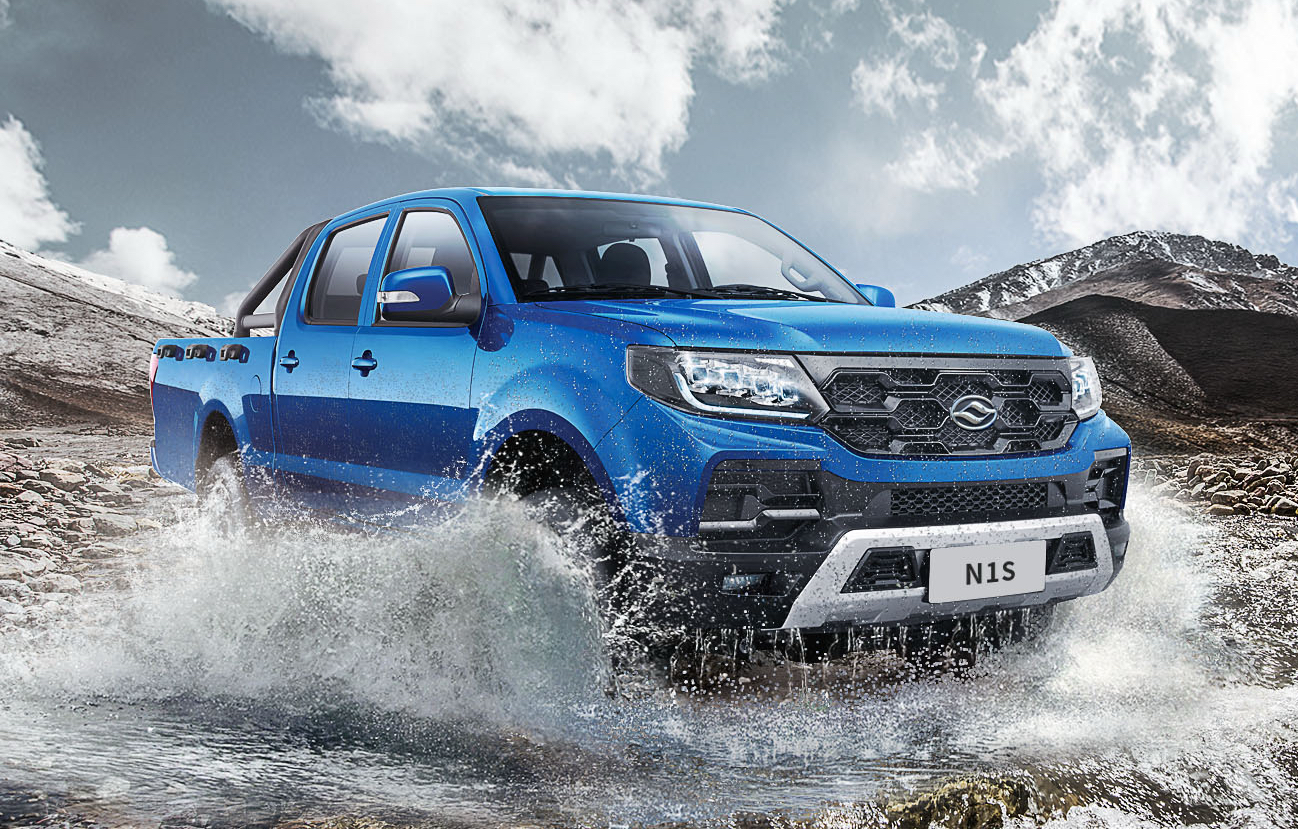

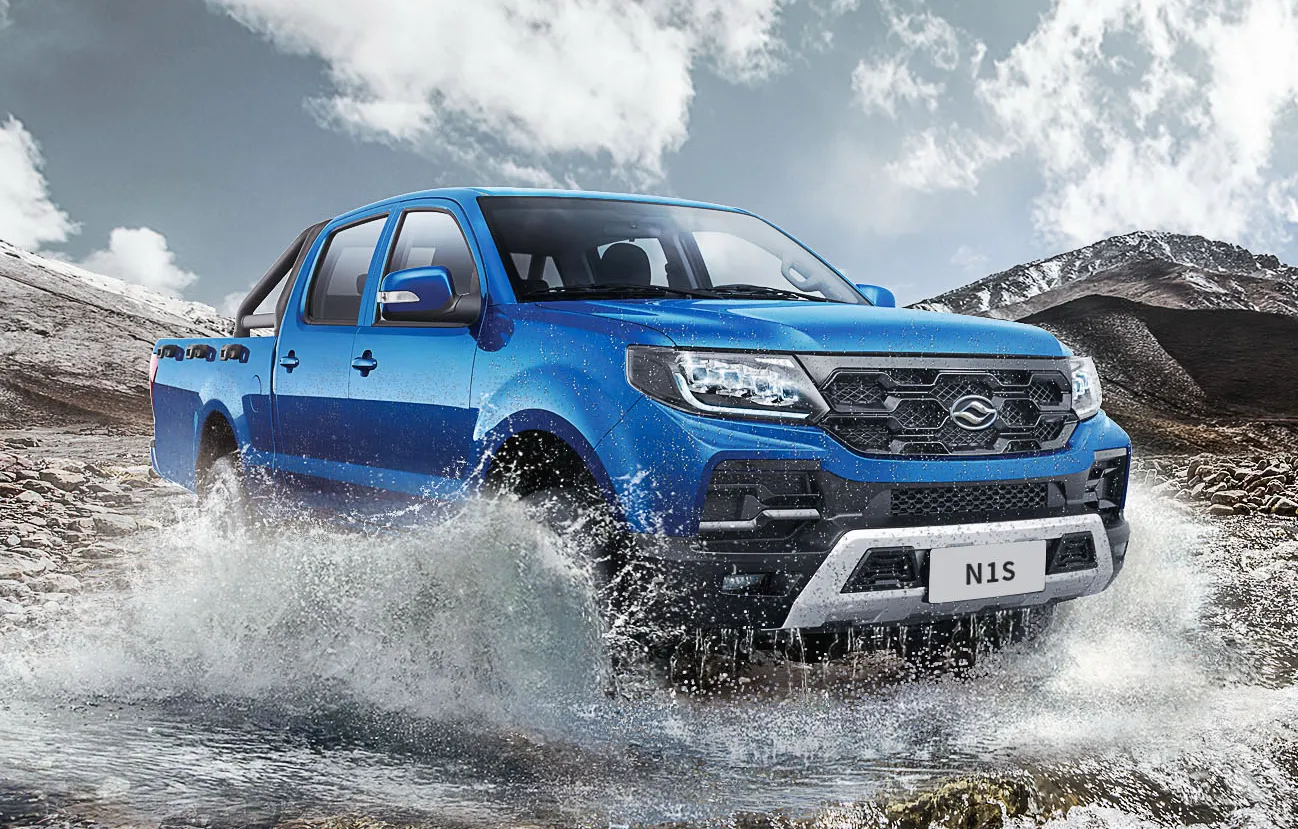

Huanghai Pickup N1S
Pickup Truck

Huanghai Pickup N1S

Overall Dimensions (mm)
5570 * 1770/1840 * 1805
Cargo Box (mm)
1815 *1520* 480
Wheelbase (mm)
3385
Wheel Track (fr/rr mm)
1528/1528
Seating Capacity
2+3
Approach / Departure (°)
32/26
Ground Clearance (mm)
215
Max Speed (km/h)
140
Rated Payload (kg)
490
Curb Weight (kg)
1860
GVW (kg)
2675
Drive Mode
Part time, 4WD
Engine Model
4K22D4M
Engine Type
In-line, 4 cylinder
Displacement (L)
2.378
Max Power (kW)
118
Max Torque (N·m)
230
Transmission
5MT
Fuel Type
Gasoline
Fuel Tank (L)
70
Tire
235/65R17

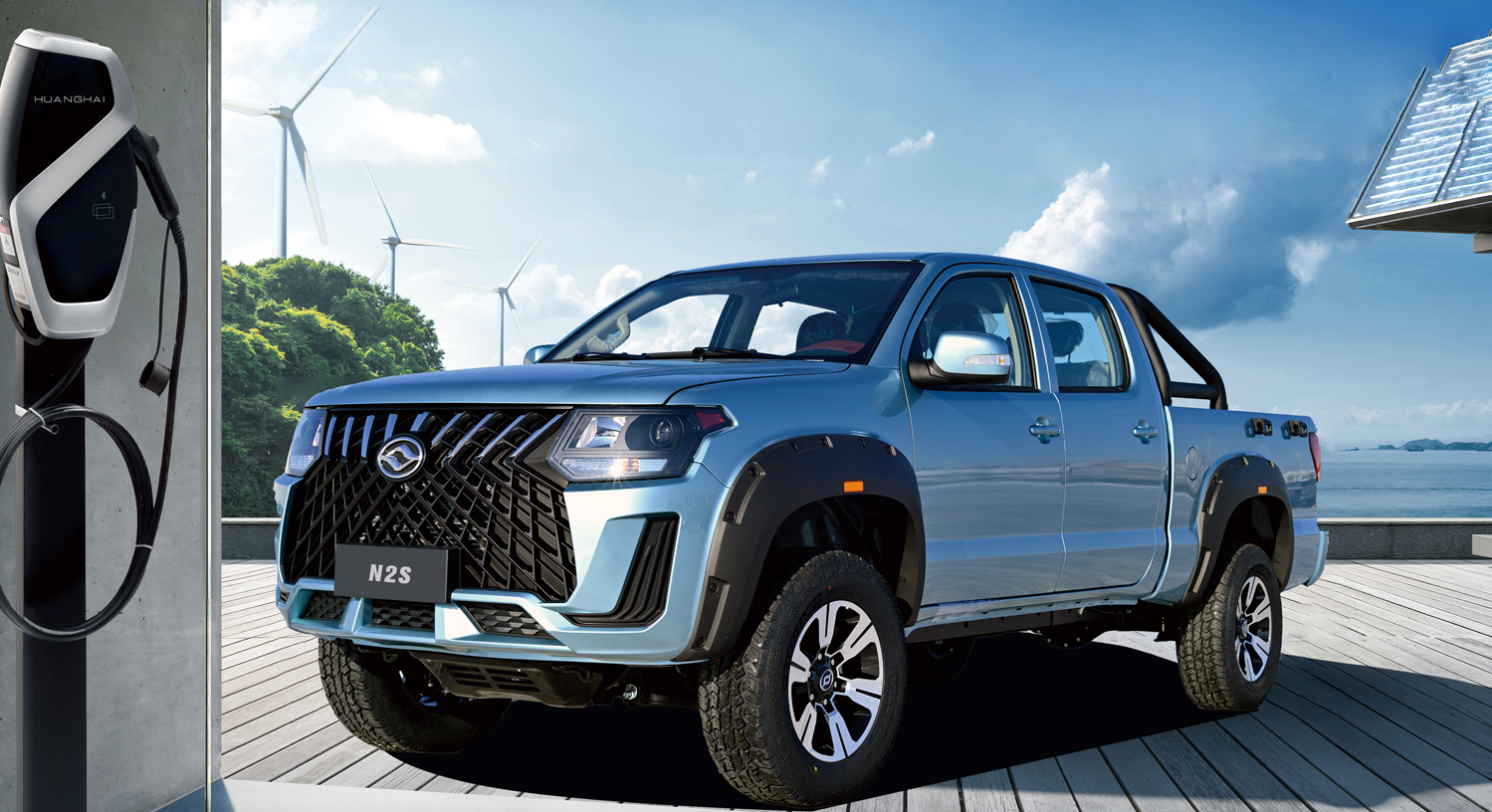

Huanghai N2 Extended Range
Pickup Truck

Huanghai N2 Extended Range

Overall Dimensions (mm)
5317 * 1940 * 1843 / 5317 * 1940 * 1843
Cargo Box (mm)
1520/1541/419 / 1520/1541/419
Wheelbase (mm)
3200 / 3200
Wheel Track (fr/rr mm)
1643 / 1643
Seating Capacity
5 / 5
Max Speed (km/h)
140 / 130
Rated Payload (kg)
1000 / 1000
Drive Mode
2WD / 4WD
Gradeability (%)
30 / 30
Engine Model
To be determined
Displacement (L)
1.5T
Max Power (kW)
14 / 14
Fuel Type
Gasoline
Fuel Consumption
Mixed fuel consumption: 7.2L/100km
Motor Type
Permanent magnet synchronous motor
Motor Rated Power (kW)
10 / 10
Motor Peak Power (kW)
-- / --
Motor Peak Torque (N·m)
260 / 260
Charging Method
Electric external charging / Onboard wireless charging system
Battery Type
Lithium iron phosphate
Battery Capacity (kWh)
11.92 / 11.92

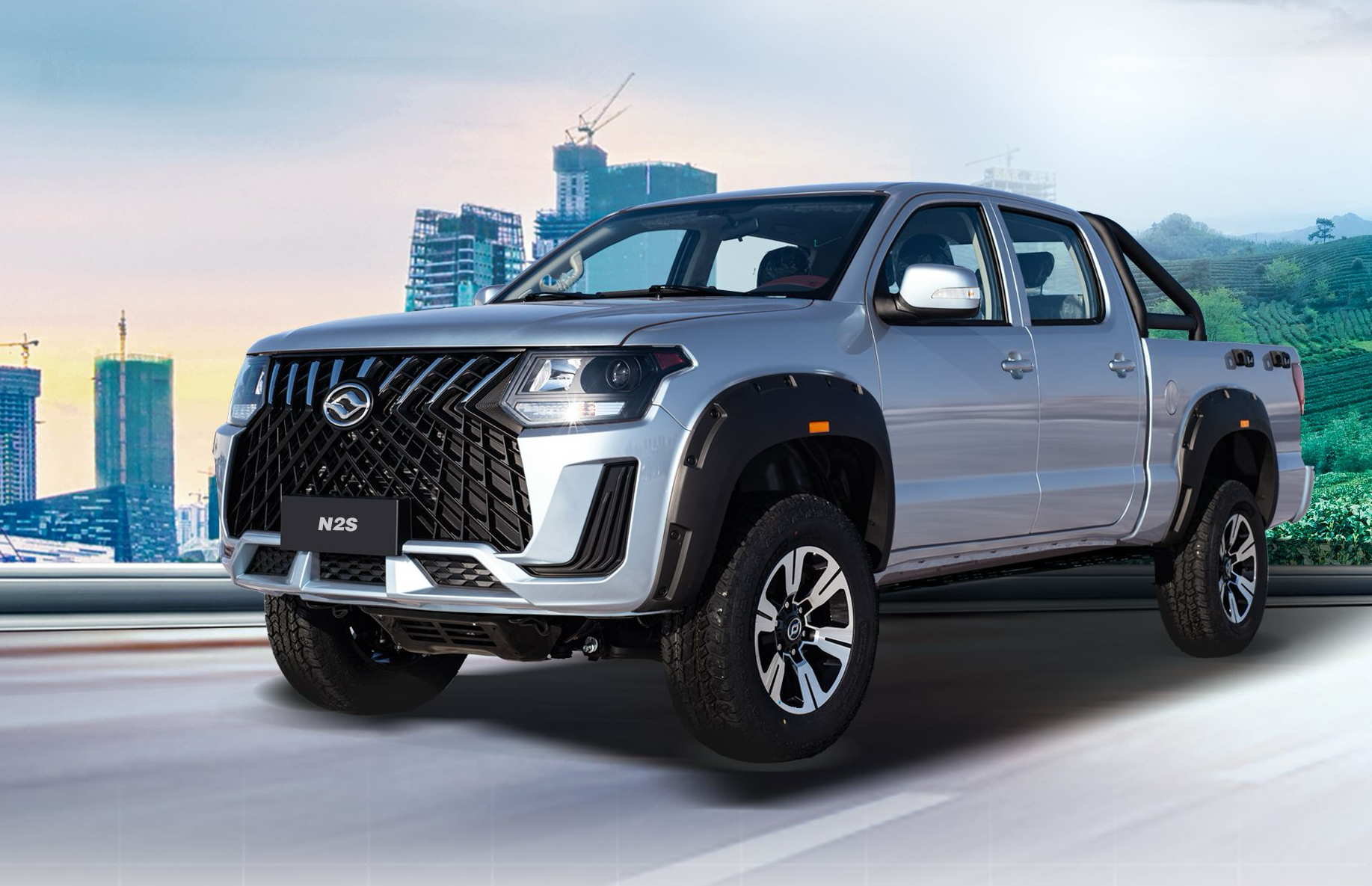

Huanghai Pickup N2S
Pickup Truck

Huanghai Pickup N2S

Wheelbase (mm)
3405
Wheel Track (fr/rr mm)
1605/1605
Seating Capacity
2+3
Approach / Departure (°)
32/26
Max Speed (km/h)
140
Rated Payload (kg)
490
Curb Weight (kg)
1925
GVW (kg)
2740
Engine Model
JE493
Engine Type
in-line, 4 cylinder
Displacement (L)
2.771
Max Power (kW)
85
Max Torque (N·m)
285
Transmission
6MT
Fuel Type
diesel
Fuel Tank (L)
70
Tire
265/65R17

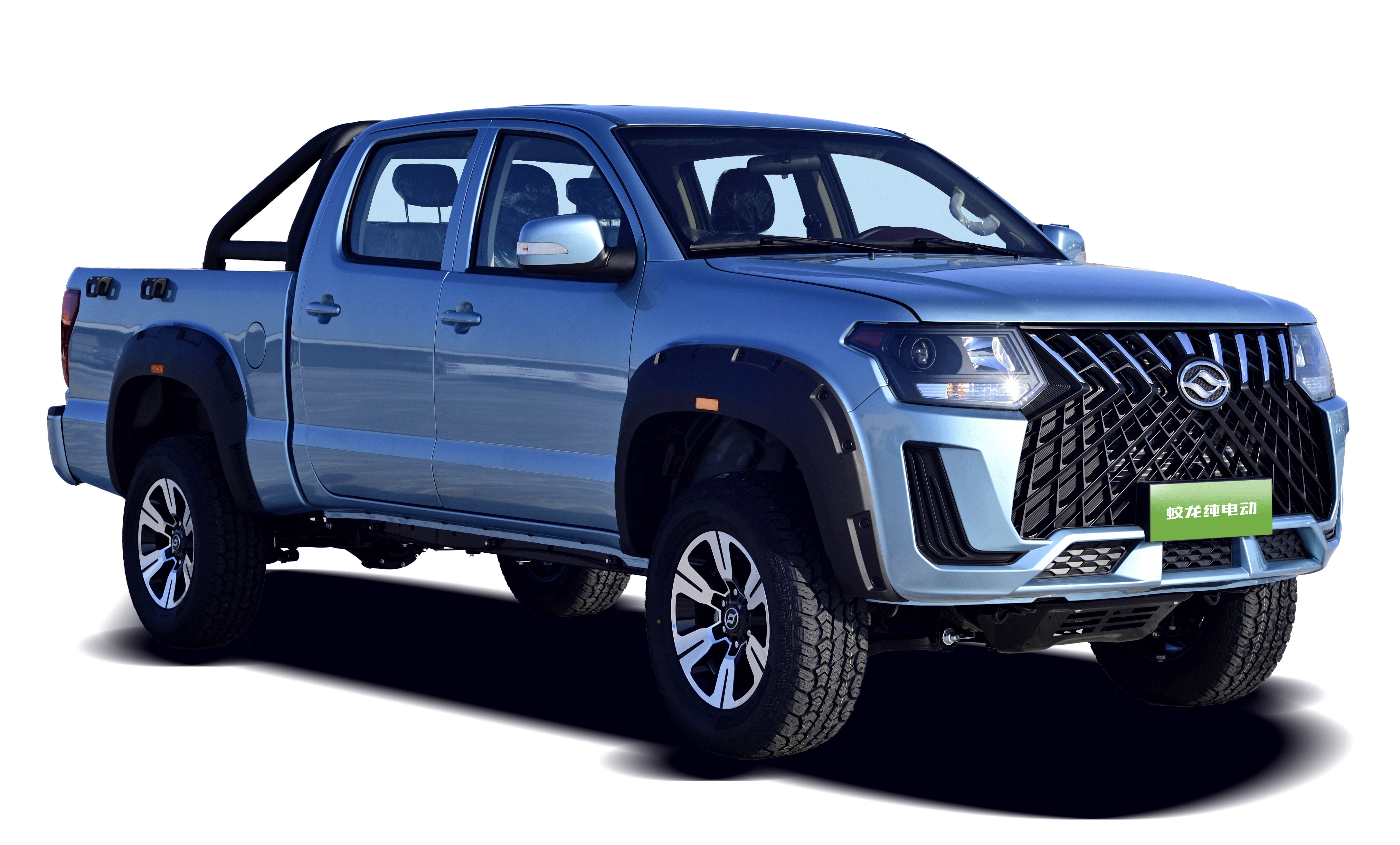

Huanghai N2 EV Pickup
Pickup Truck

Huanghai N2 EV Pickup

Overall Dimensions (mm)
5317 * 1940 * 1843 / 5317 * 1940 * 1843
Cargo Box (mm)
1856*1710*372 / 1856*1710*372
Wheelbase (mm)
3200 / 3200
Wheel Track (fr/rr mm)
1643 / 1643
Seating Capacity
5 / 5+1
Max Speed (km/h)
150 / 150
Rated Payload (kg)
1000 / 1000
Drive Mode
2WD / 4WD
Gradeability (%)
30 / 30
Motor Type
Permanent magnet synchronous motor
Motor Rated Power (kW)
100 / 100
Motor Peak Power (kW)
155 / 155
Motor Peak Torque (N·m)
350 / 350
Charging Method
AC slow charge + DC fast charge
Battery Type
Lithium iron phosphate
Battery Capacity (kWh)
71.68 / 71.68
Driving Range (km)
400 / 400

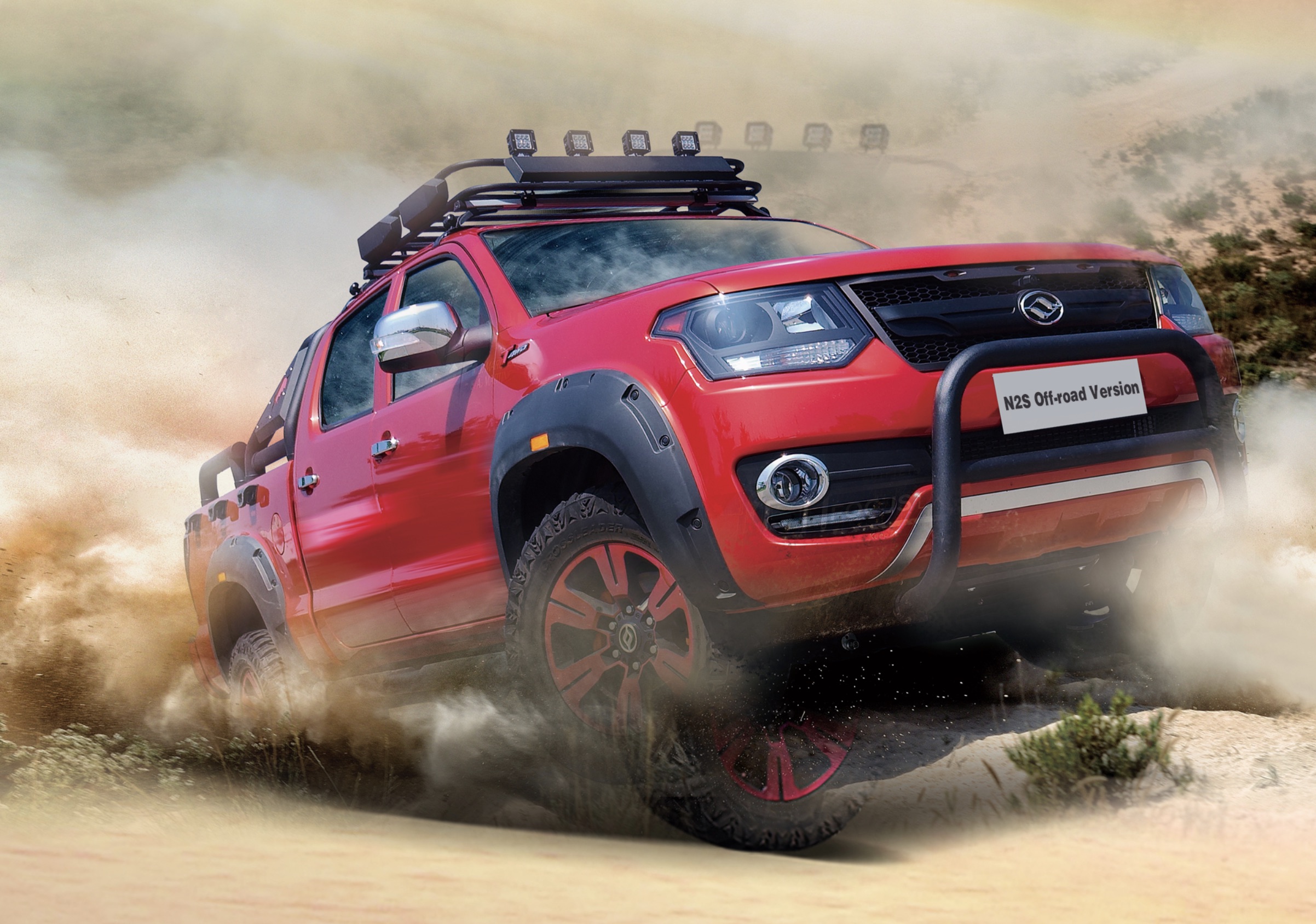

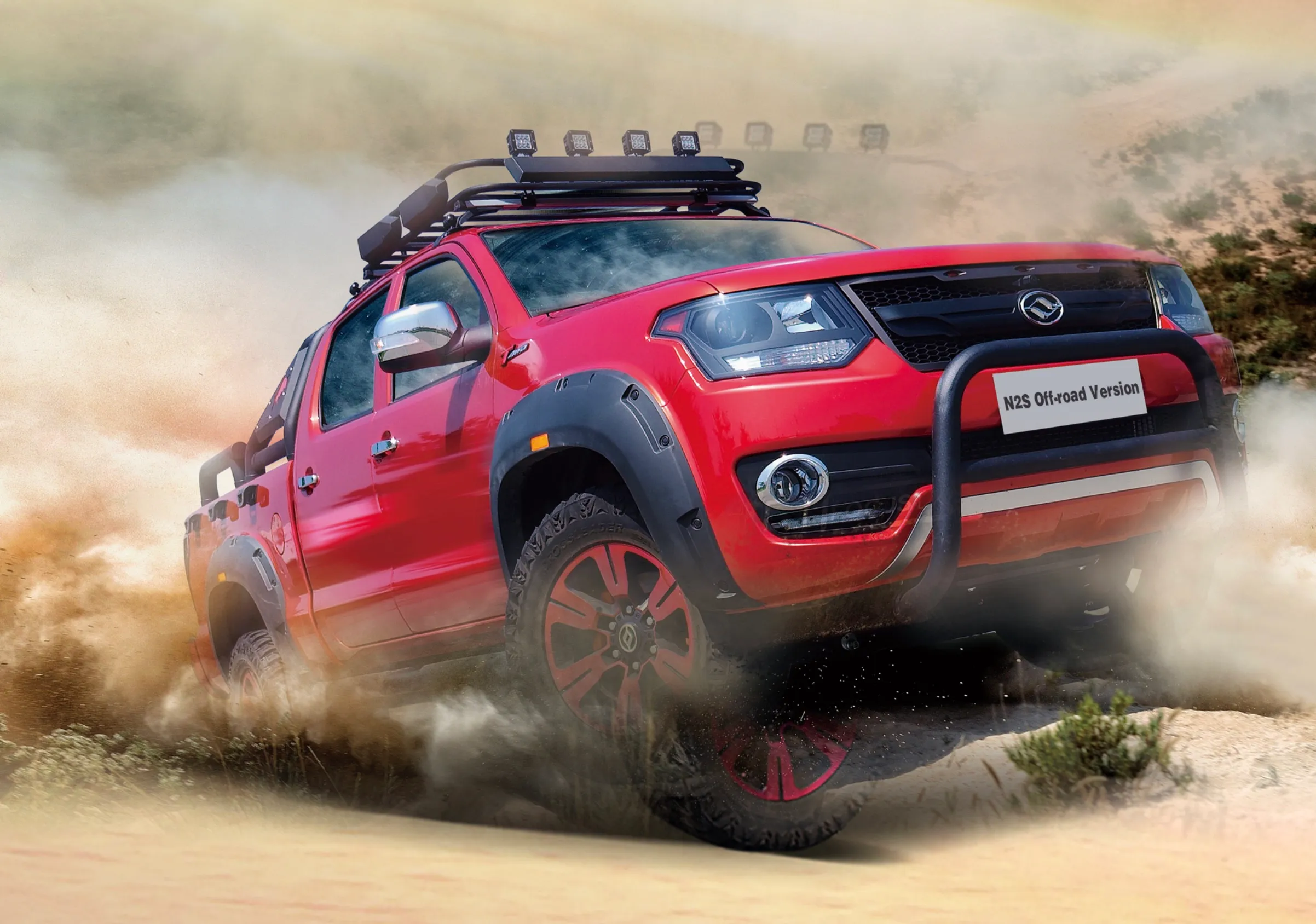

Huanghai Pickup N2S (Off Road)
Pickup Truck

Huanghai Pickup N2S (Off Road)

Wheel Track (fr/rr mm)
1605/1605
Seating Capacity
2+3
Approach / Departure (°)
32/26
Max Speed (km/h)
150
Rated Payload (kg)
Gasoline: 480 / Diesel: 490
Curb Weight (kg)
Gasoline: 1995 / Diesel: 2050
GVW (kg)
Gasoline: 2810 / Diesel: 2865
Engine Model
Gasoline: 4K22D4T / Diesel: JE4D2S
Engine Type
inline, 4 cylinder
Displacement (L)
Gasoline: 2.378 / Diesel: 2.499
Max Power (kW)
Gasoline: 160 / Diesel: 110
Max Torque (N·m)
Gasoline: 320 / Diesel: 350
Transmission
6MT
Fuel Type
Gasoline: gasoline / Diesel: diesel
Fuel Tank (L)
70
Tire
265/65R17

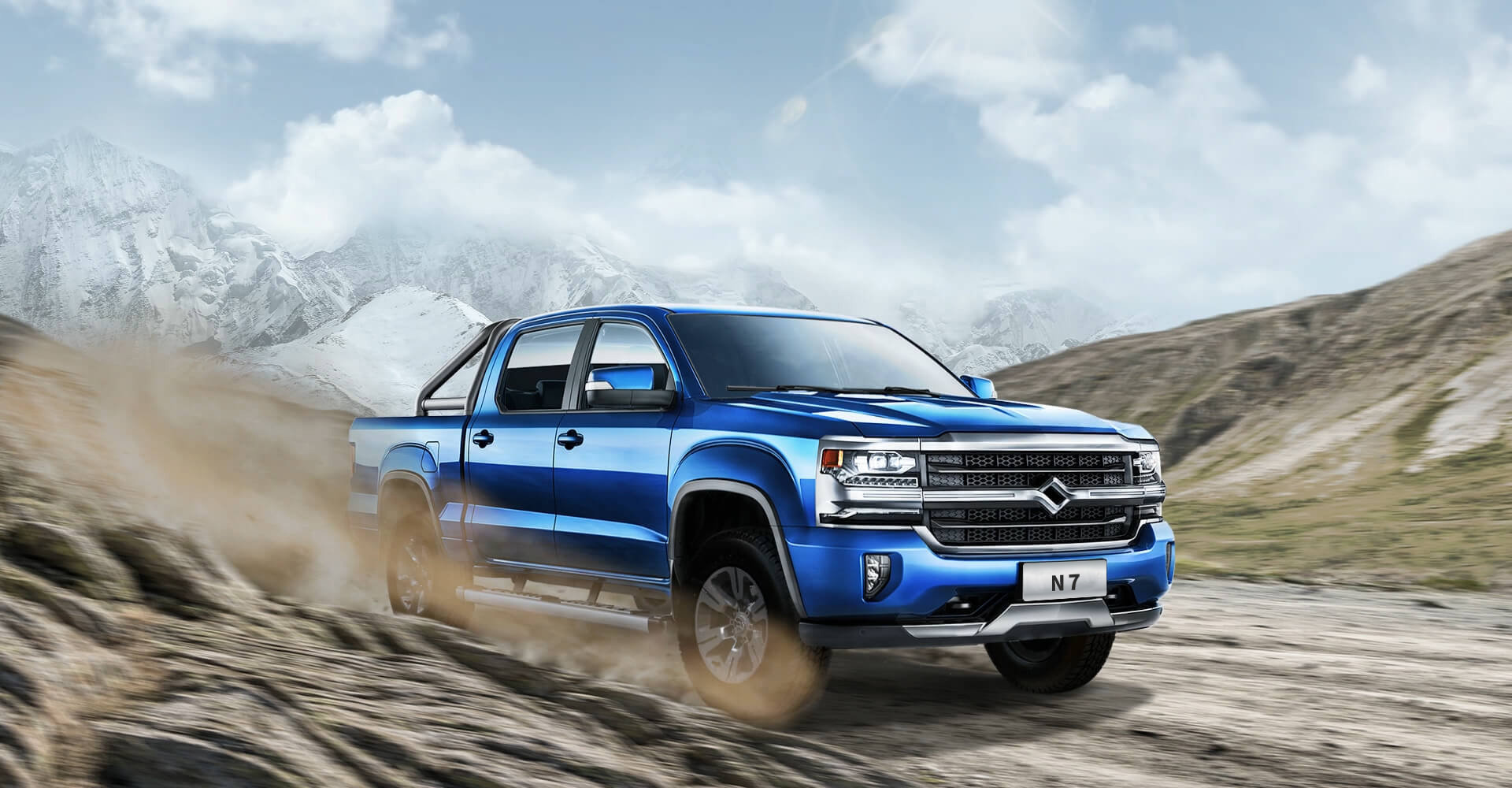

Huanghai Pickup N7
Pickup Truck

Huanghai Pickup N7

Overall Dimensions (mm)
5685*1950*1865
Cargo Box (mm)
1715*1620*480
Wheelbase (mm)
3405
Wheel Track (fr/rr mm)
1610/1610
Seating Capacity
2+3
Approach / Departure (°)
29/18
Ground Clearance (mm)
230
Max Speed (km/h)
150
Rated Payload (kg)
490
Curb Weight (kg)
2090
GVW (kg)
2905
Engine Model
JE4D25
Engine Type
Inline, 4 cylinder
Displacement (L)
2.499
Max Power (kW)
110
Max Torque (N·m)
360
Transmission
6MT
Fuel Type
Diesel
Fuel Tank (L)
70
Tire
265/65R17

Vans

Built for Urban Delivery.

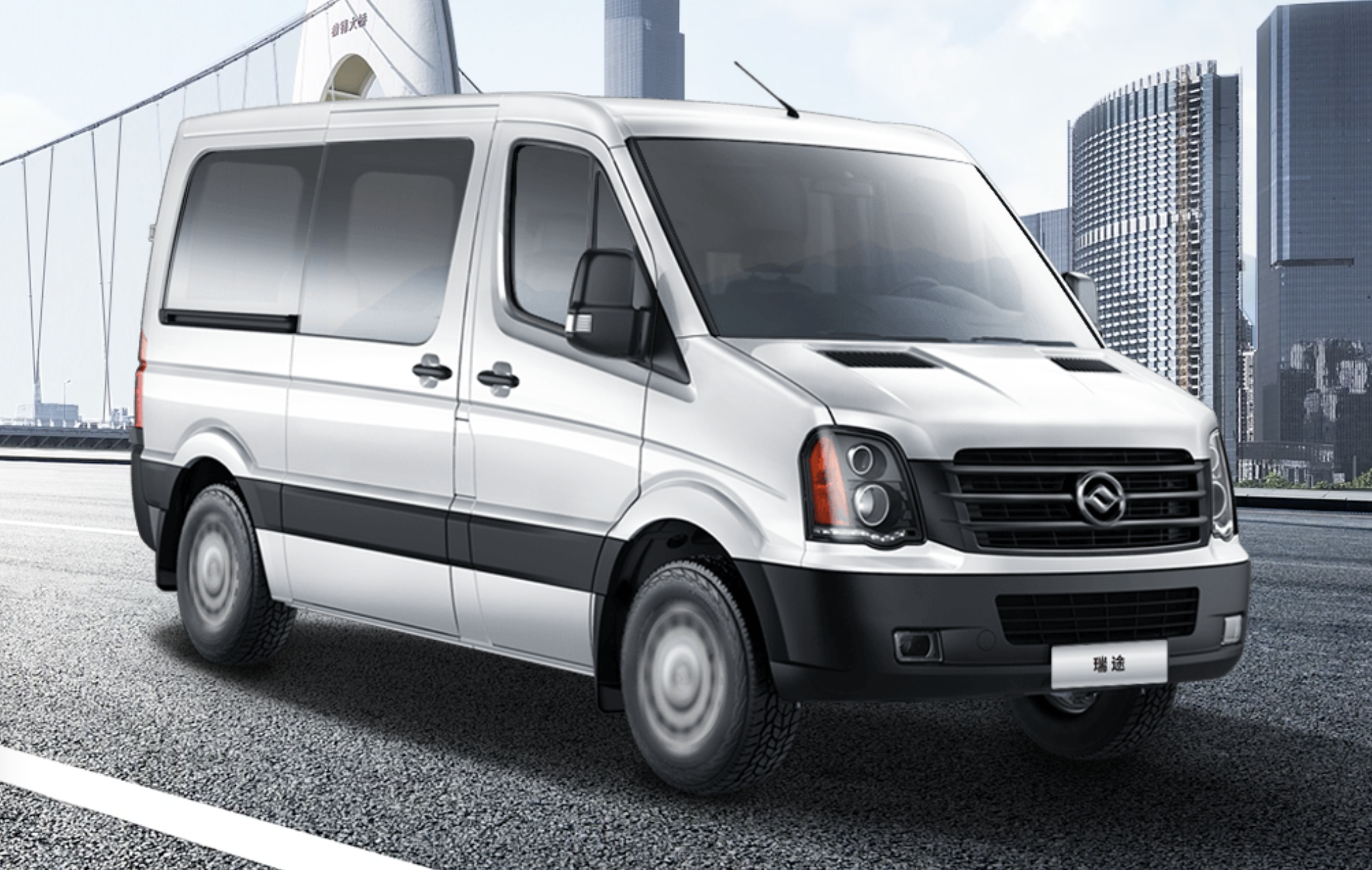

Huanghai Raytour
Van

Huanghai Raytour

Seating Capacity
12 / 11
GVW (kg)
3960
Curb Weight (kg)
2460
Max Payload (kg)
—
Cargo Space (mm)
—
Fuel Consumption (L/100km)
10
Max Speed (km/h)
135 / 125

Buses

Urban, Inter-City & Zero-Emission Transit.

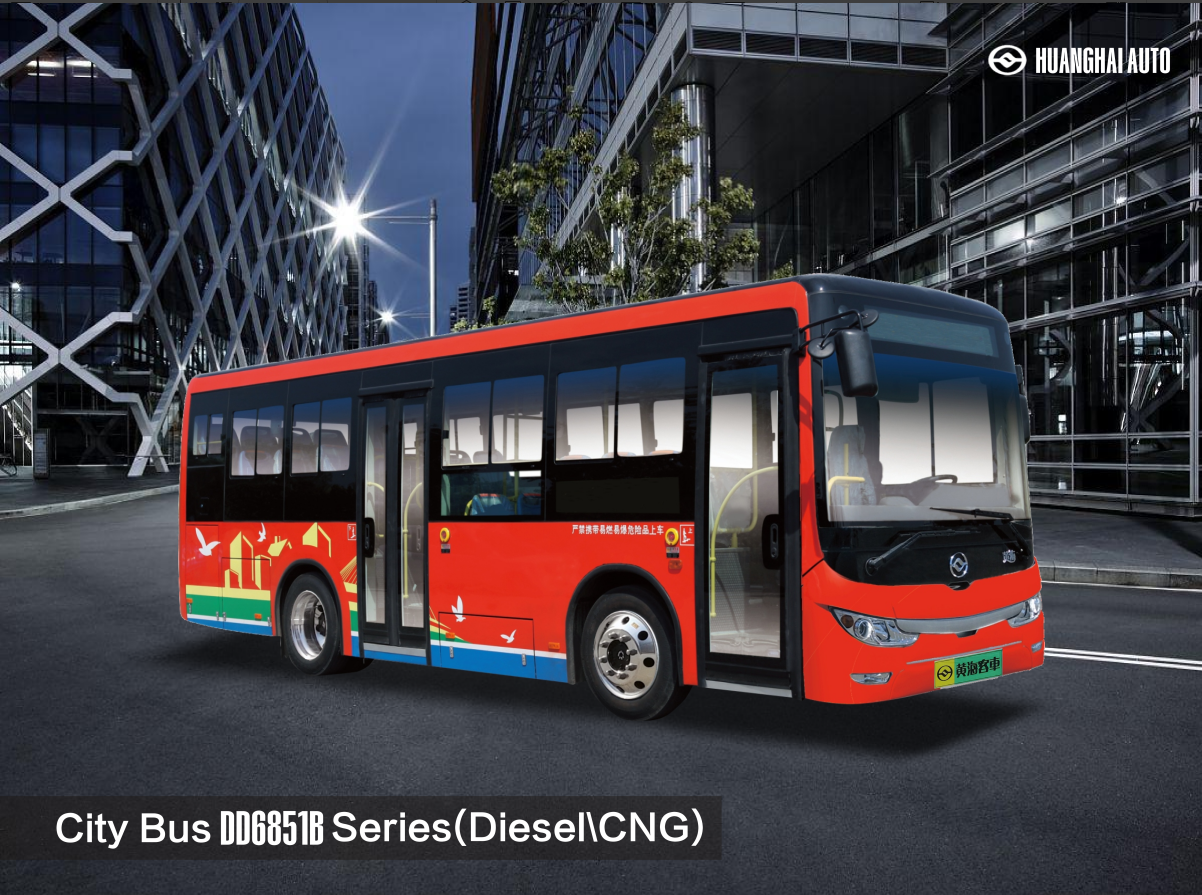

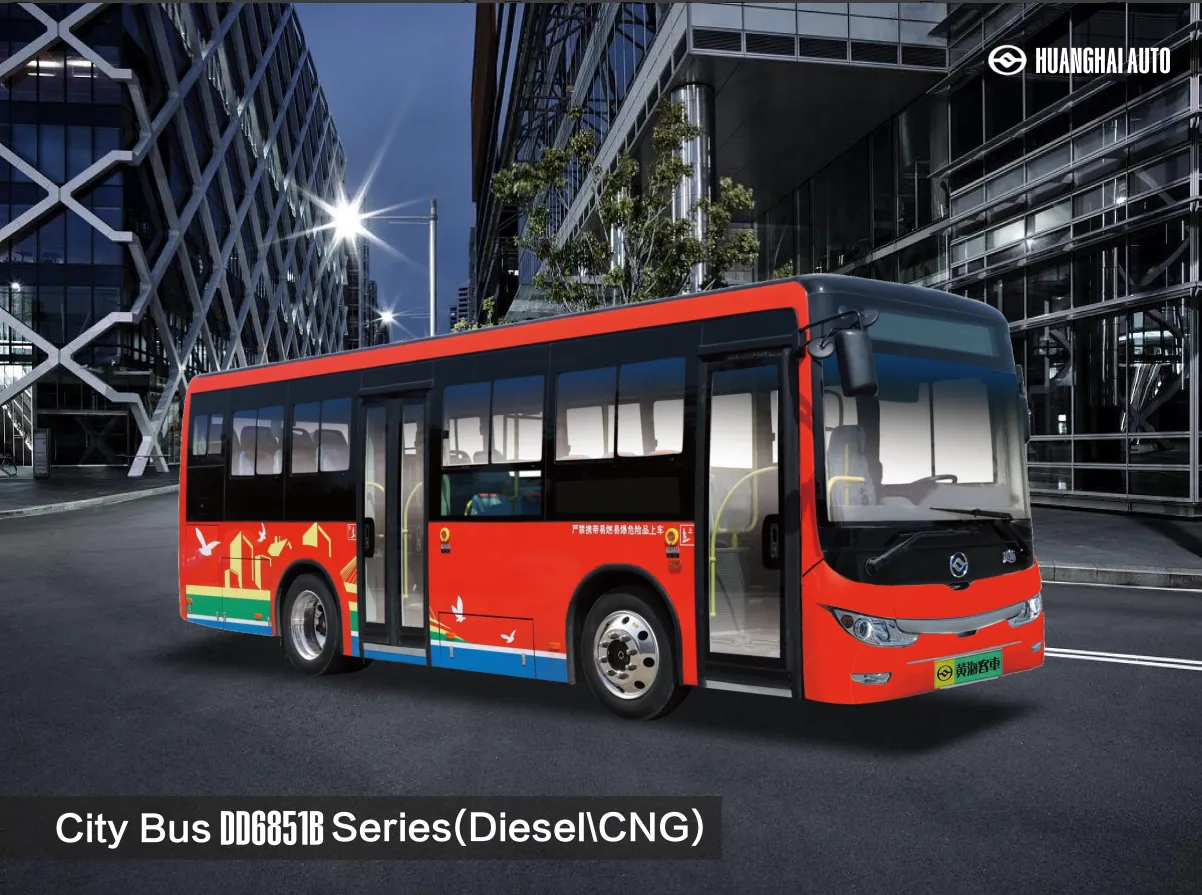

DD6851B
City Bus

DD6851B

L×W×H (mm)
8540×2500×3035/3180
Rated Capacity (persons)
64/16-31 · 56/16-31
Engine
YC4G180-50 / YUCHAI
Power (kW/r/min)
132
Torque (N·m/r/min)
660/1100–1500
Curb Weight (kg)
8300/8600
GVW (kg)
12500
Body Structure
Monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
4000
Approach/Departure (°)
7/7
Suspension
3/4
Tyre
9R22.5
Fuel Tank (L)
200
Max Speed (km/h)
69

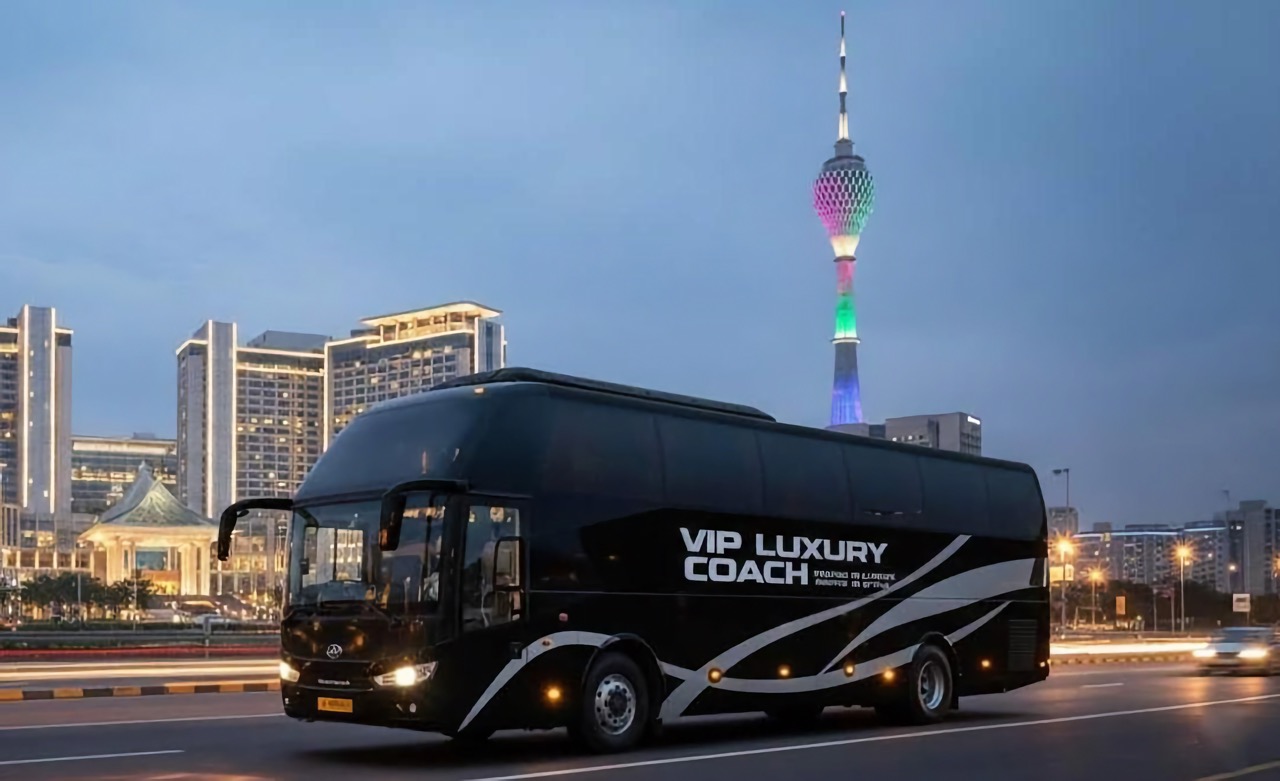

Luxury Coach
Coach

Luxury Coach

L×W×H (mm)
11985 × 2500 × 3815
Wheelbase (mm)
6000
Engine
YC6MK340-50
Power (kW/r/min)
340 HP
Torque (N·m/r/min)
1500 Nm
Curb Weight (kg)
13500
GVW (kg)
18000
Approach/Departure (°)
9° / 8°
Suspension
Firestone Air Springs
Tyre
295/80R 22.5 Tubeless
Fuel Tank (L)
260
Max Speed (km/h)
120

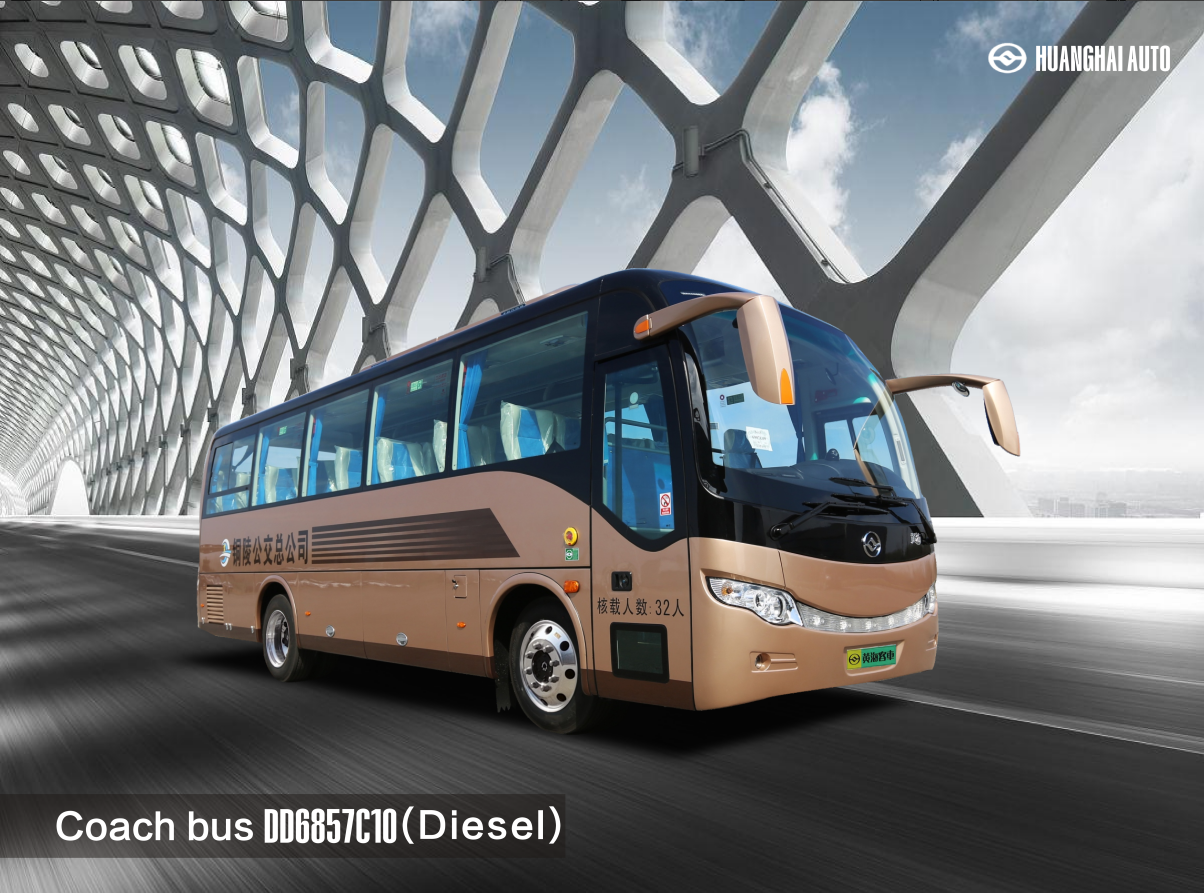

DD6857C10
Coach

DD6857C10

L×W×H (mm)
8545×2500×3189/3289
Rated Capacity (persons)
23–38
Engine
YC4G200-50 / YUCHAI
Power (kW/r/min)
147/2200
Torque (N·m/r/min)
720/1100–1500
Curb Weight (kg)
8300/7950
GVW (kg)
11500
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
4300
Approach/Departure (°)
12/9
Suspension
8/10, –/–
Tyre
235/70R22.5
Fuel Tank (L)
190
Max Speed (km/h)
100

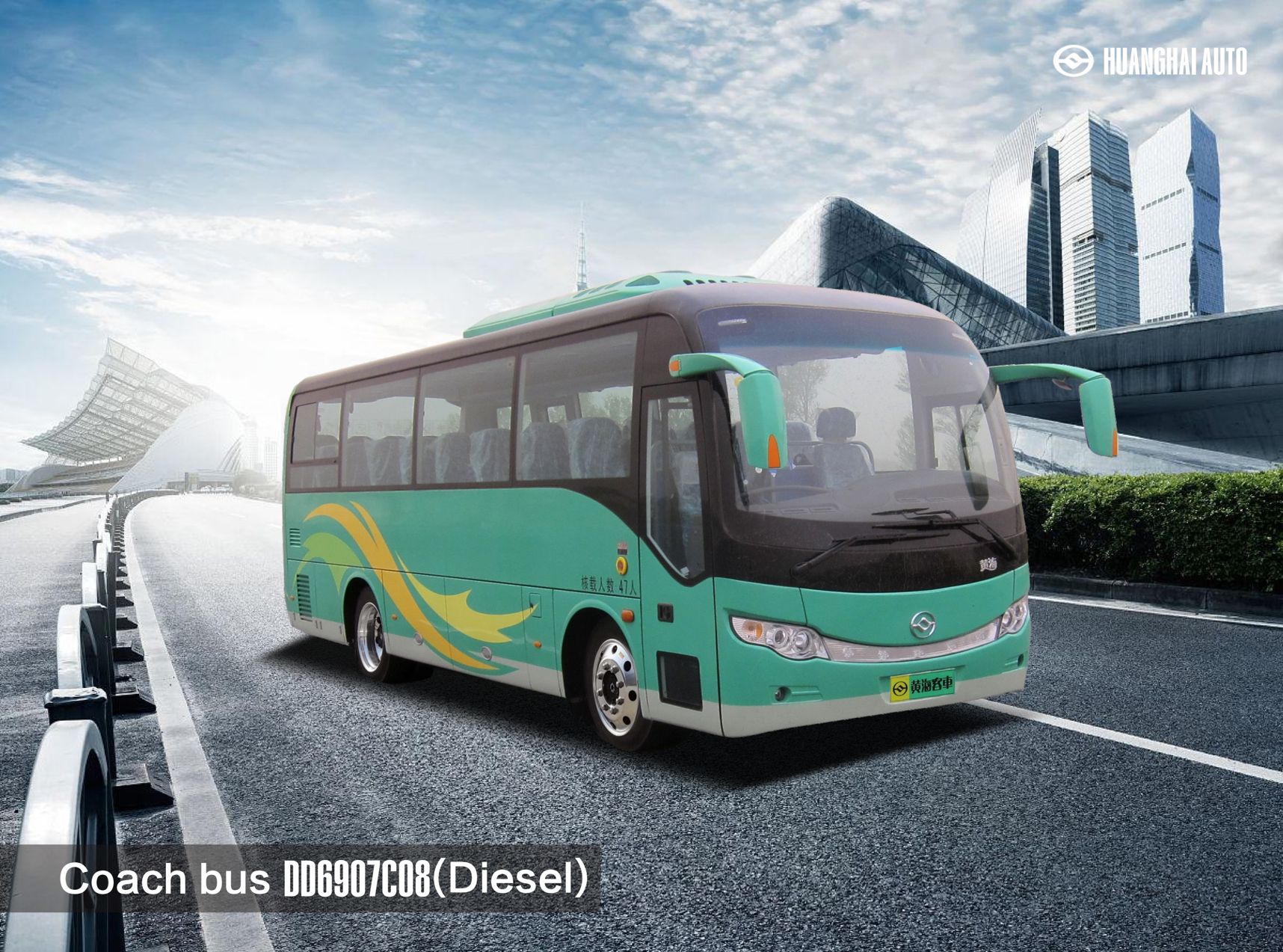

DD6907C08
Coach

DD6907C08

L×W×H (mm)
8995×2500×3189/3289
Rated Capacity (persons)
24–40
Engine
YC6J250-52 / YUCHAI
Power (kW/r/min)
184/2300
Torque (N·m/r/min)
860/1200–1800
Curb Weight (kg)
8850/9150
GVW (kg)
12200
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
4250
Approach/Departure (°)
14/9
Suspension
8/10, –/–
Tyre
255/70R22.5
Fuel Tank (L)
190
Max Speed (km/h)
100

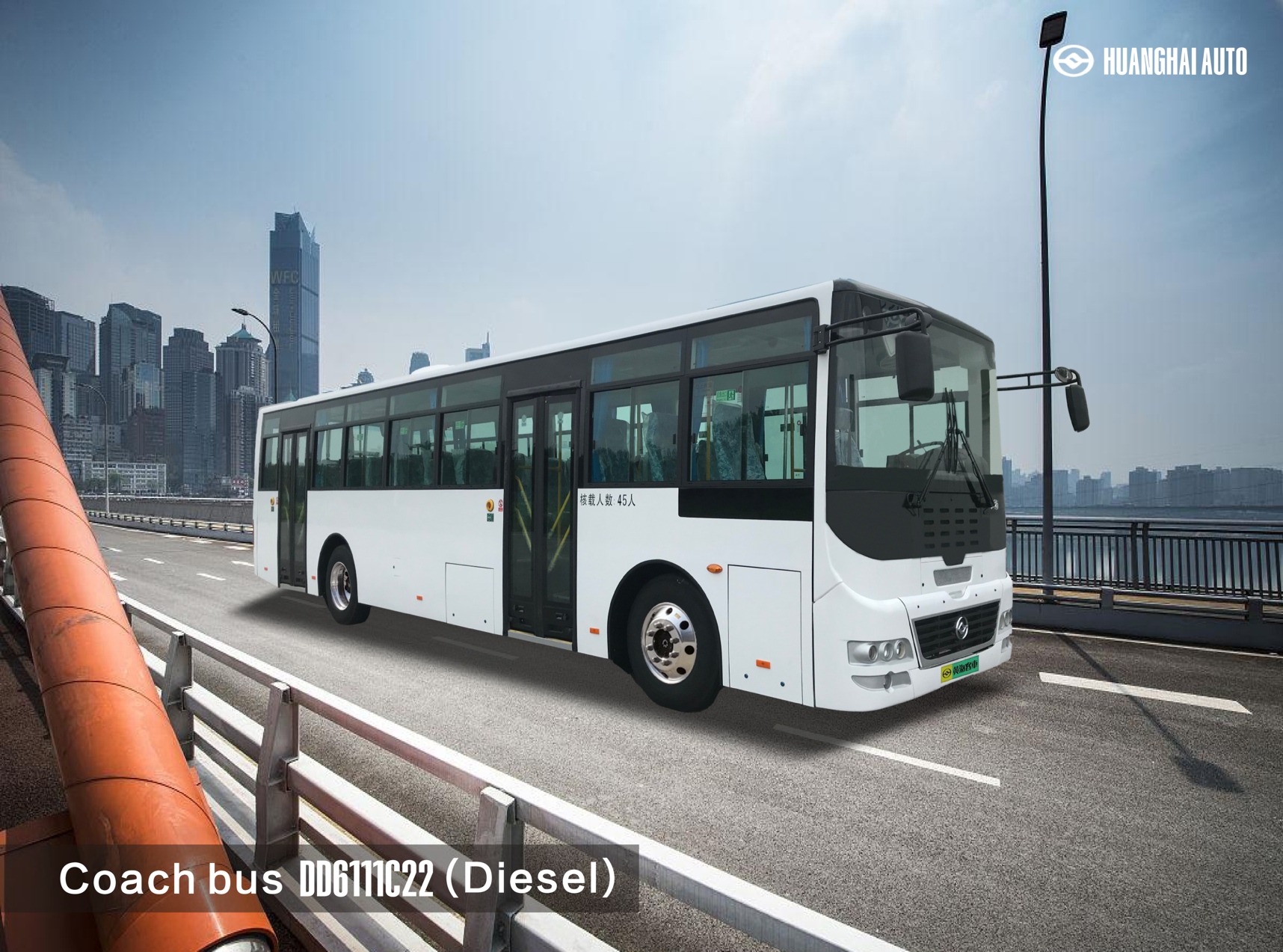

DD6111C22
Coach

DD6111C22

L×W×H (mm)
11165×2532×3240/3320/3450
Rated Capacity (persons)
24–45
Engine
YCS06220-62 / YUCHAI
Power (kW/r/min)
162/2100
Torque (N·m/r/min)
800/1200–1700
Curb Weight (kg)
10500/11000
GVW (kg)
16600
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
6000
Approach/Departure (°)
9/7
Suspension
17/12
Tyre
11R22.5
Fuel Tank (L)
200
Max Speed (km/h)
100

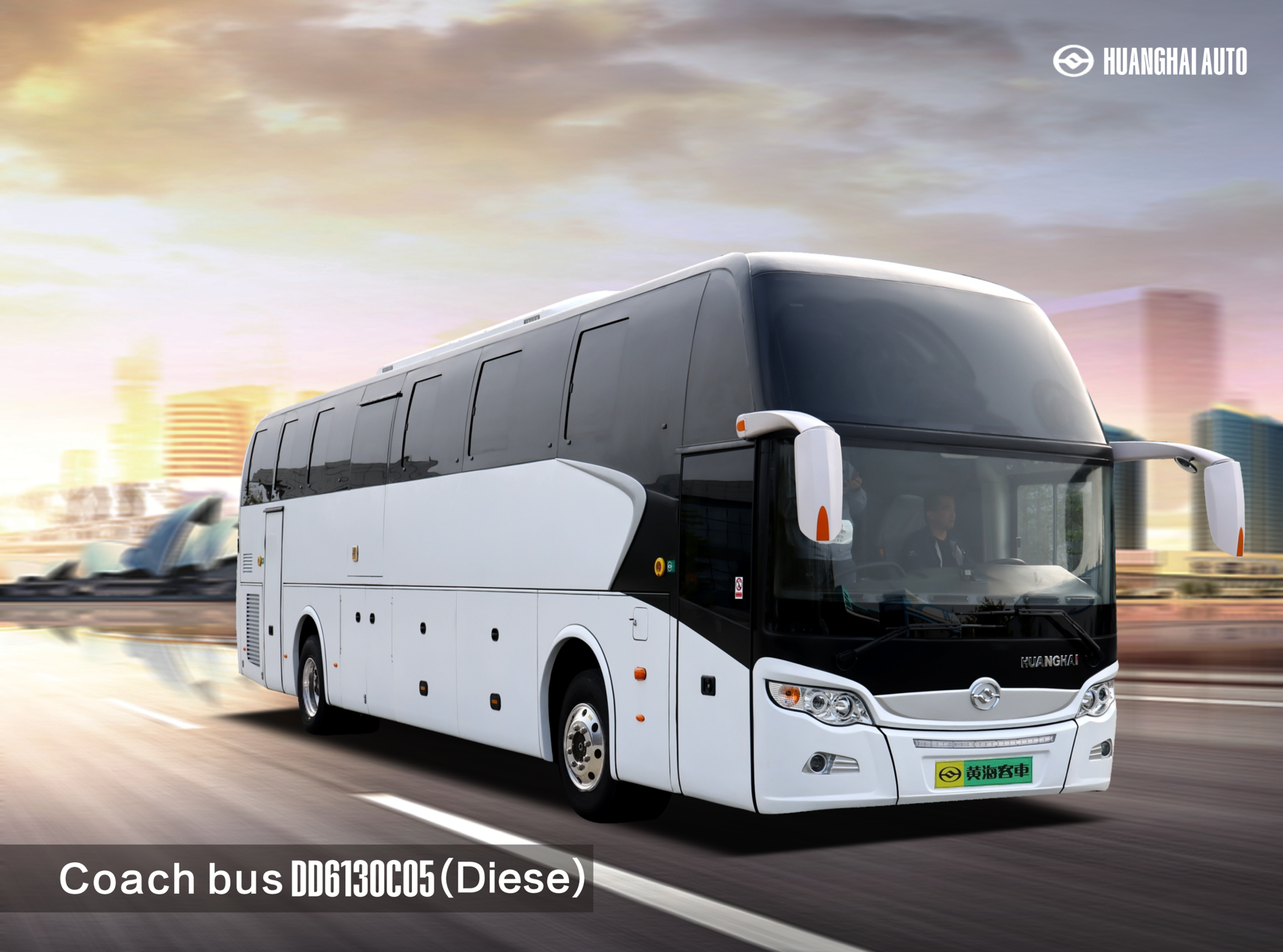

DD6130C05
Coach

DD6130C05

L×W×H (mm)
13030×2500×3815
Rated Capacity (persons)
24–57
Engine
ISG12E5410 / Cummins
Power (kW/r/min)
306/1800
Torque (N·m/r/min)
2100/1000
Curb Weight (kg)
14850
GVW (kg)
19000
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
6700
Approach/Departure (°)
8/9
Suspension
–/–
Tyre
295/60R22.5
Fuel Tank (L)
350
Max Speed (km/h)
100

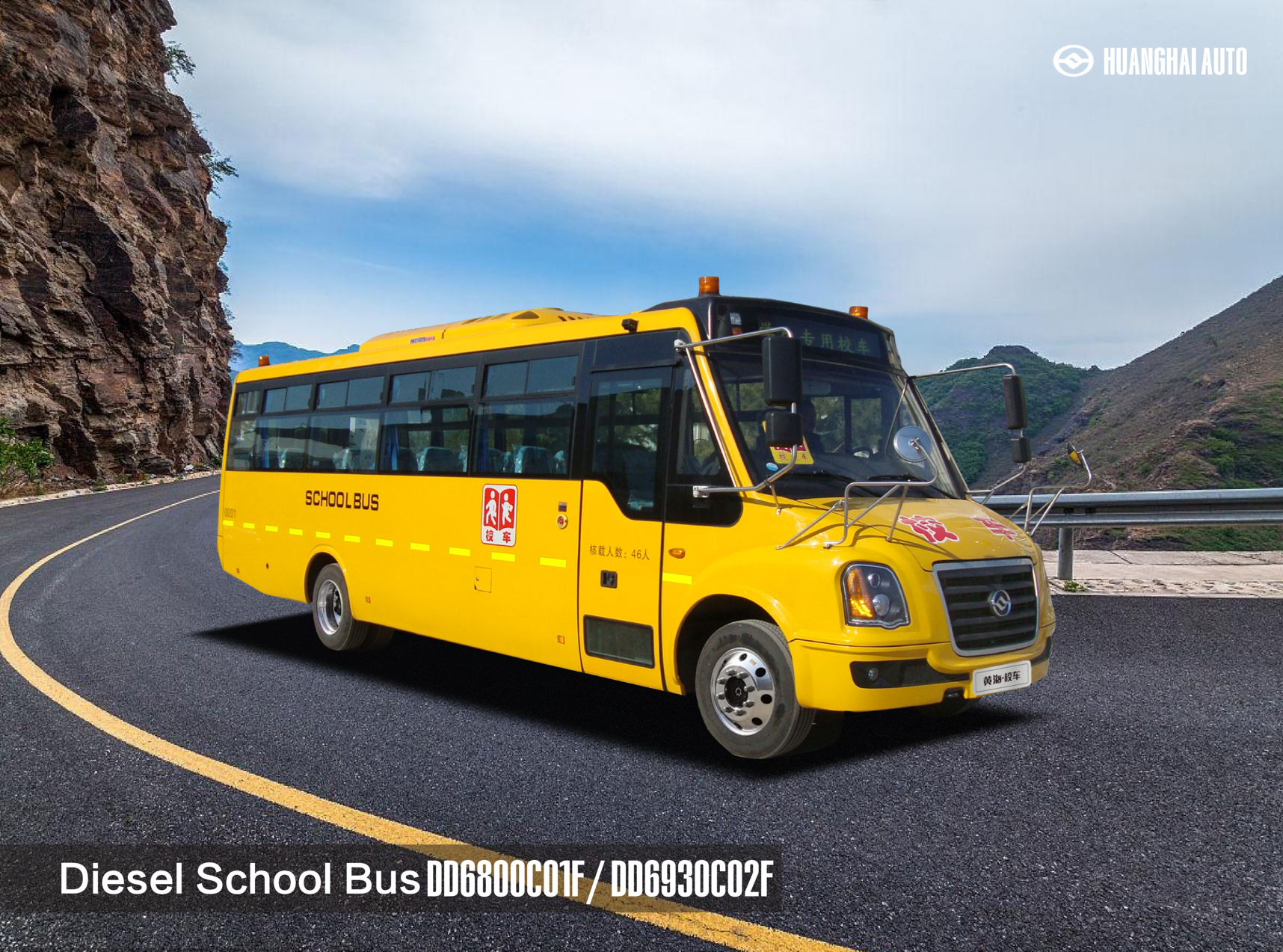

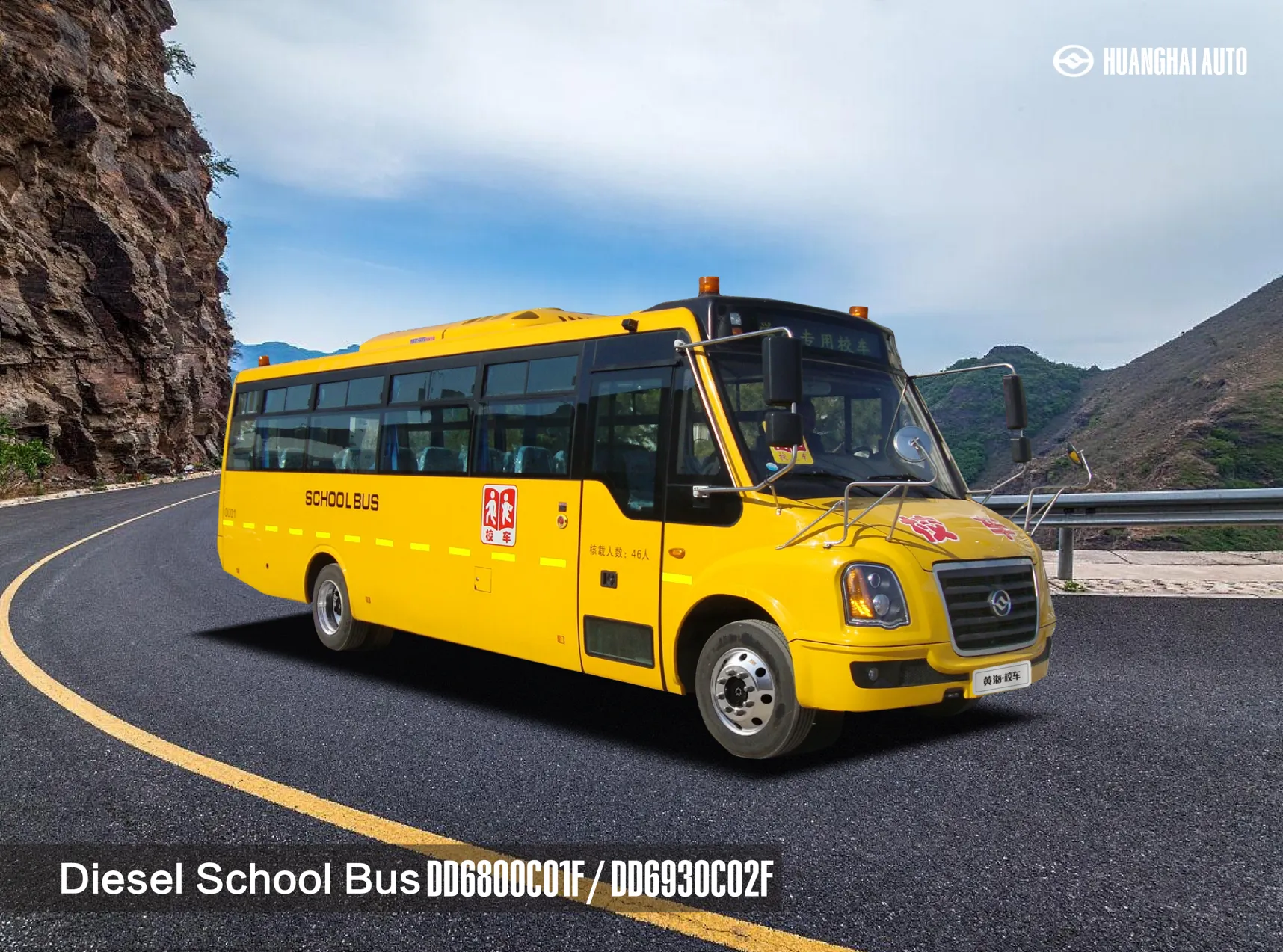

DD6800C01F / DD6930C02F
School Bus

DD6800C01F / DD6930C02F

L×W×H (mm)
7995×2455×2970/3030
Rated Capacity (persons)
24–41
Engine
YC4D140-41
Peak Power (kW)
103
Curb Weight (kg)
6450
GVW (kg)
8600
Body Structure
Monocoque
Anti-corrosion
Cathodic electrophoresis
Wheelbase (mm)
4500
Suspension
Leaf spring
Tyre
225/70R19.5
Max Speed (km/h)
80

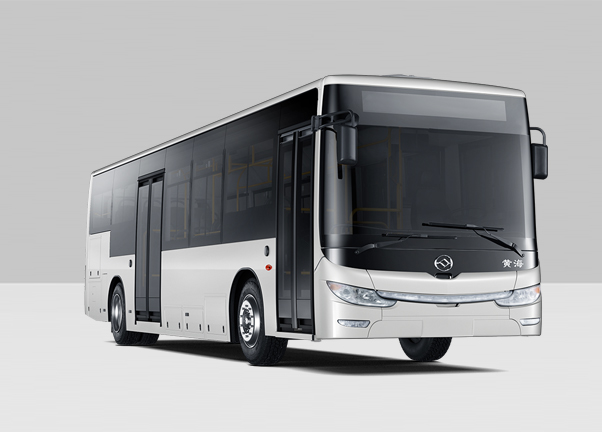

DD6109EV
Serial Electric Coach

DD6109EV

L×W×H (mm)
10490×2482×3100/3250
Rated Seats (persons)
102/96
Bulletin Seats (seats)
18–32
Drive Motor
Jing-Jin TZ460XSE02
Motor Power (kW/r/min)
135
GVW (kg)
17000
Curb Weight (kg)
10000/10700
Wheelbase (mm)
6100
Wheel Track (mm)
1990/1840
Approach/Departure (°)
8/11
Suspension
Air suspension
Tyre
275/70R22.5
Battery
LiFePO4 / CATL
Battery Capacity
138.24 kWh (576V 240Ah)
Max Speed (km/h)
69

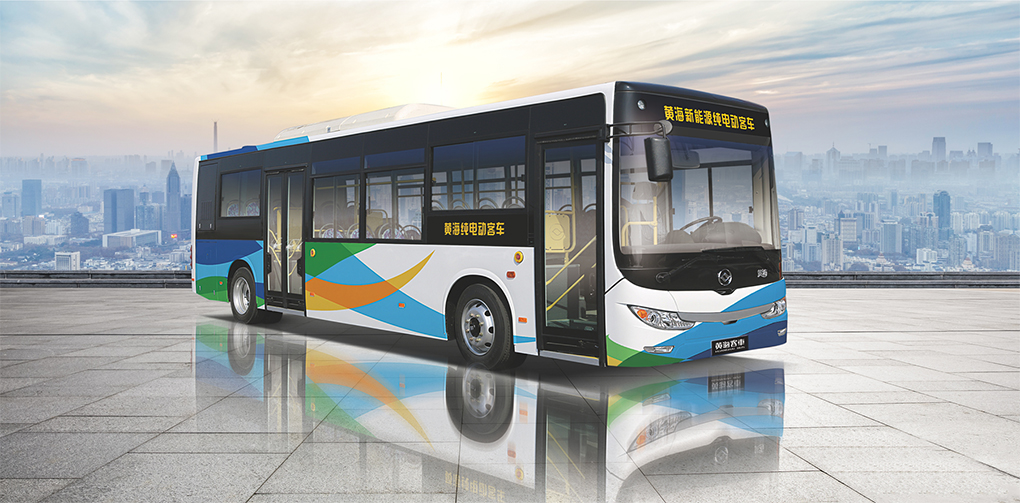

DD6100EV1
Electric City Bus

DD6100EV1

Dimension（mm）
10010×2440×3070/3230
Wheelbase（mm）
5670
Approach/departure angle(°)
7/7
Rated seats
70/66
Max. speed （km/h）
69
Battery capacity
138.24kwh（576V240Ah）
Drive motor model
lvkonGC-TM1000-05
Suspension system
Leaf spring
G.V.W.(kg)
14000
Curb weight (kg)
8400/8700
Tire
255/70R22.5
Normal rated power（kW/r/min）
80/105
Bulletin seats
18-33

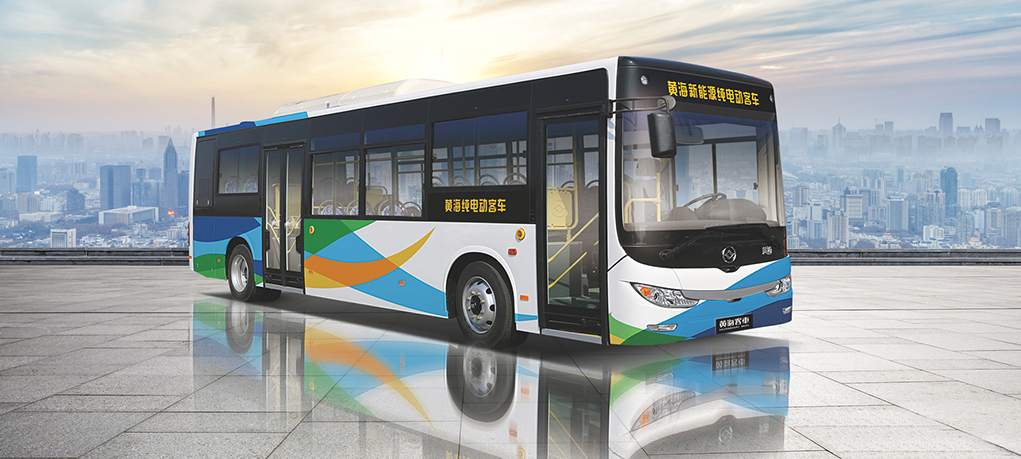

DD6100EV4
Electric City Bus

DD6100EV4

Dimension（mm）
10010×2440×3070/3230
Wheelbase（mm）
5670
Approach/departure angle(°)
8/11
Rated seats
66，70/16-33
Max. speed （km/h）
69
Battery capacity
163.2、184.4kWh（Lithium iron phosphate (LifePO)）
Motor model
lvkon
Suspension
Leaf spring
G.V.W.(kg)
13500
Curb weight (kg)
8500/8800
Tire
255/70R22.5

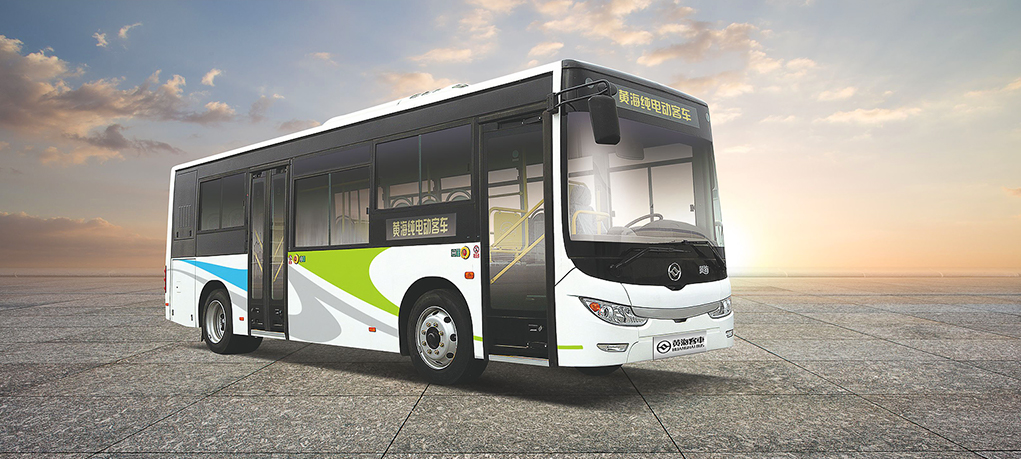

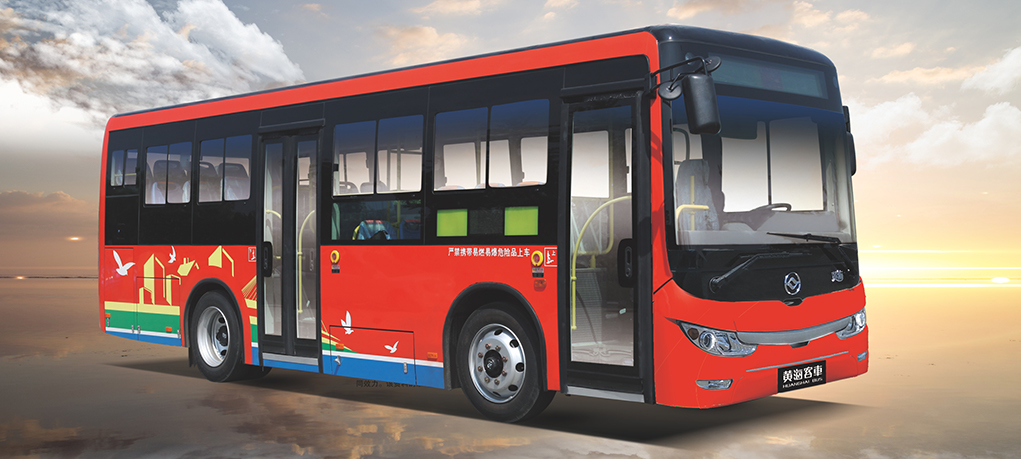

DD6851EV5/EV6
Electric City Coach

DD6851EV5/EV6

L×W×H (mm)
8540×2480×3075/3125
Wheelbase (mm)
4750
Approach/Departure (°)
8/13
Rated Seats
70 / 16–27
Max Speed (km/h)
69
GVW (kg)
13700
Curb Weight (kg)
8300
Battery
LiFePO4 — 133.5 kWh
Drive Motor
lvkon GC-TW750-06
Suspension
Leaf spring
Tyre
255/70R22.5

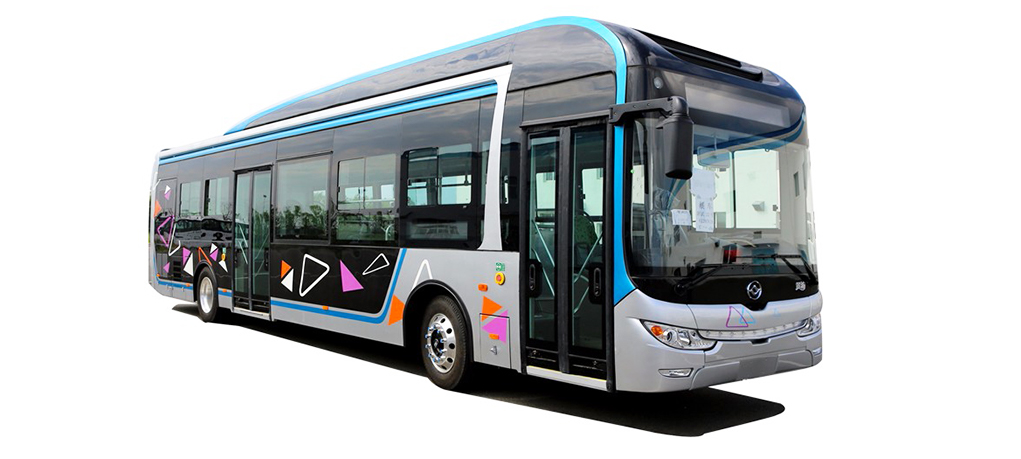

DD6129EV19
Electric City Coach

DD6129EV19

Dimension（mm）
12000×2532×3100/3270/3470
Wheelbase（mm）
6250
Approach/departure angle(°)
8/8
Rated seats
88,81/24-38
Max. speed （km/h）
69
Battery capacity
303.6kWh（Lithium iron phosphate (LifePO)）
Motor model
Prestolite Electric
Suspension
Air Suspension system
G.V.W.(kg)
18000
Curb weight (kg)
12150/12600
Tire
275/70R22.5

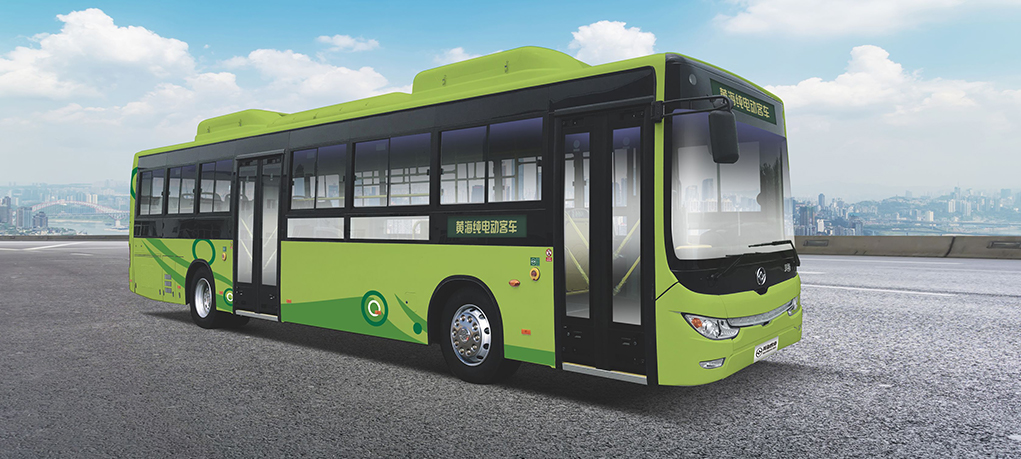

DD6129EV20
Electric City Coach

DD6129EV20

Dimension（mm）
12000×2550×3350
Wheelbase（mm）
6100
Approach/departure angle(°)
7/7
Seating capacity (person)
84/24-46,76/24-46
Max. speed （km/h）
69
G.V.W.(kg)
18000
Curb weight (kg)
13000,12500
Battery capacity（kWh）
338.4
Motor model
Auto EkontrolEK1352850PMS2
Suspension
Front & rear air spring
Tire
275/70R22.5

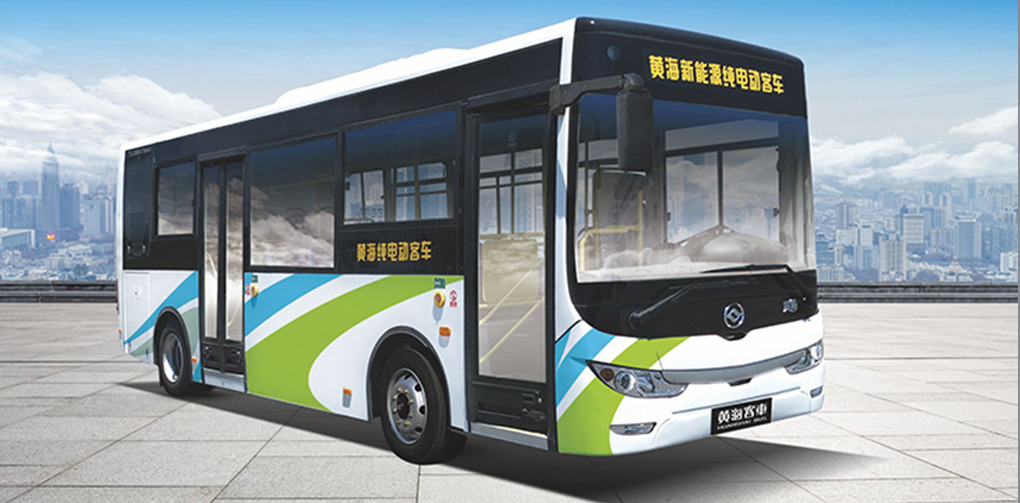

DD6800EV1
Electric City Bus

DD6800EV1

Dimension（mm）
8040×2440×3020/3220
Wheelbase（mm）
4300
Approach/departure angle(°)
7/11
Rated seats
58/53
Max. speed （km/h）
69
Power batteries
Lithium iron phosphate (LifePO)/ Contemporary Amperex Technology Co., Limited (CATL).
Battery capacity
138.24kWh（576V 240Ah）
Drive motor model
Suzhou lvkonGC-TK750-00
Suspension system
Leaf spring
G.V.W.(kg)
13600
Curb weight (kg)
7600/7900
Tire
255/70R22.5
Normal rated power（kW/r/min）
75（Rated）/120（Peak）
Bulletin seats
14-22

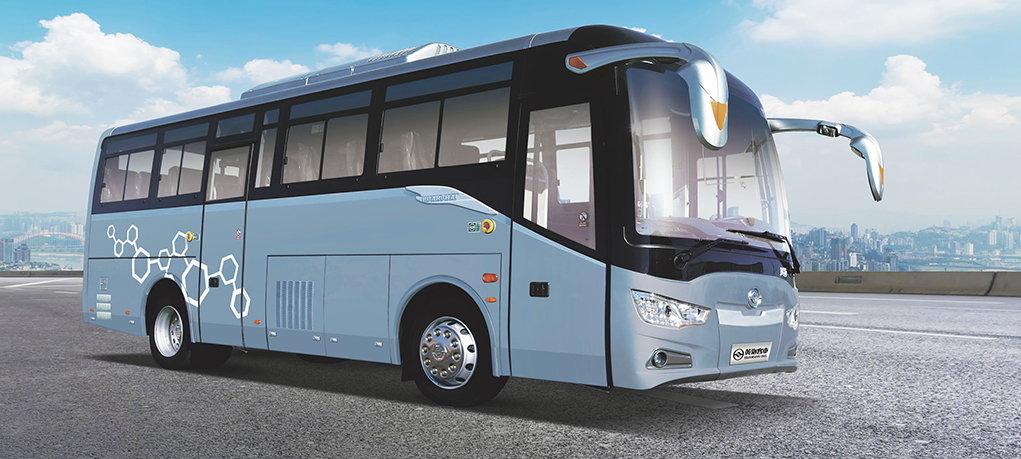

DD6820BEV1
Electric City Coach

DD6820BEV1

Dimension（mm）
8245×2500×3240/3460
Wheelbase（mm）
4150
Approach/departure angle(°)
9/12
Rated seats
44/16-34, 42/16-32
Max. speed （km/h）
69
G.V.W.(kg)
13500
Curb weight (kg)
9300/8900
Battery capacity
149.7 kWh
Motor model
lvkonTZ370XS-LKM2102
Suspension
Multi-piece leaf spring (9-leaf front / 10-leaf rear)
Tire
255/70R22.5

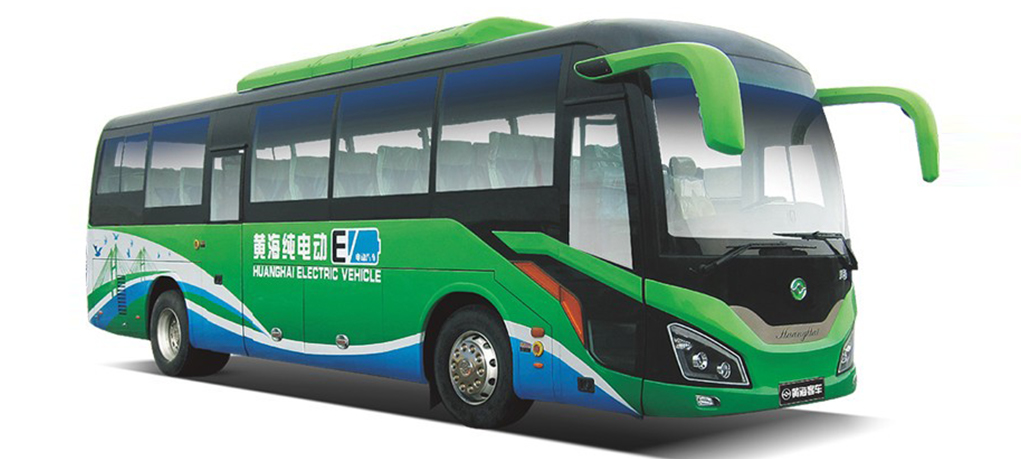

DD6110KEV5
Electric City Coach

DD6110KEV5

Dimension（mm）
10840×2500×3430/3580
Wheelbase（mm）
5820
Approach/departure angle(°)
10/10
Rated seats
24-48, 52
Max. speed （km/h）
85
Battery capacity
163.3、184.4kWh （Lithium iron phosphate (LifePO)）
Motor model
lvkon
Suspension
Air Suspension system or Leaf spring
G.V.W.(kg)
16500
Curb weight (kg)
11500/11850
Tire
295/80R22.5

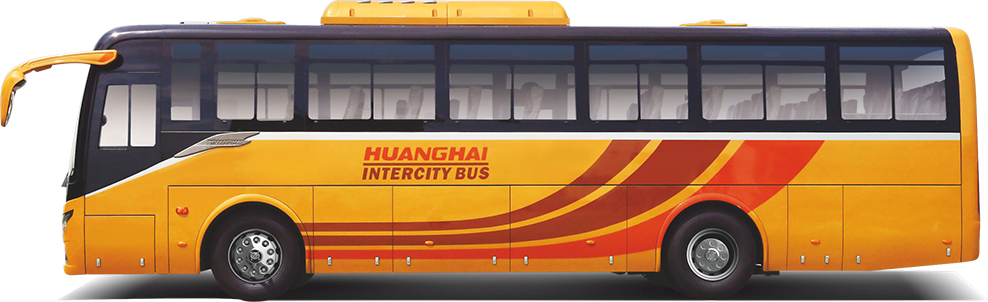

DD6115BEV2
Electric City Bus

DD6115BEV2

Dimension（mm）
10690×2550×3220/3430
Wheelbase（mm）
5250
Approach/departure angle(°)
9/8
Seating capacity (person)
72/24-48
Max. speed （km/h）
69
G.V.W.(kg)
18000
Curb weight (kg)
11300/11000/10700
Battery capacity
200.5 kWh
Motor model
WR510-02026
Suspension
Air Suspension system
Tire
295/80R22.5

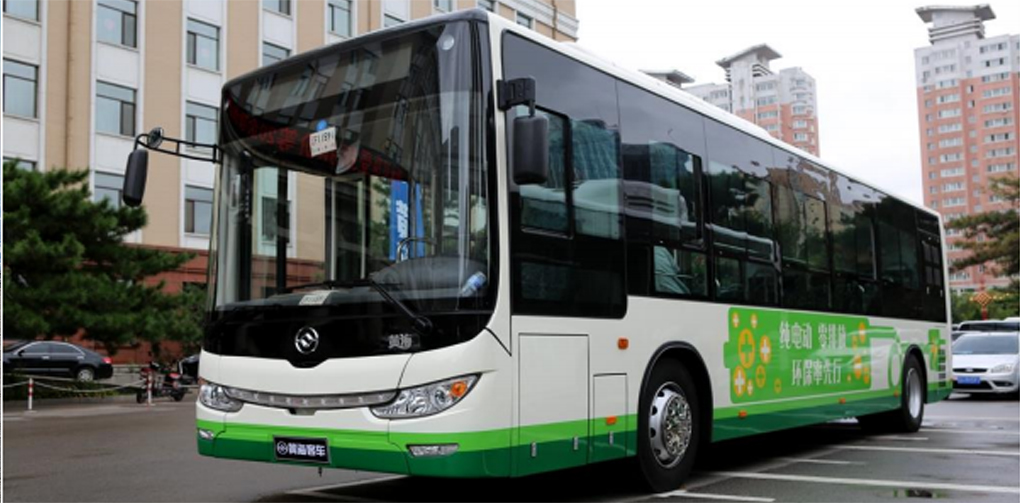

DD6109EV5
Electric City Bus

DD6109EV5

Dimension（mm）
10490×2482×3100/3250
Wheelbase（mm）
6100
Approach/departure angle(°)
8/11
Rated seats
102/96
Max. speed （km/h）
69
Battery capacity
138.24kWh (576V 240Ah)
Drive motor model
Jing-Jin TZ460XSE02
Suspension system
Air Suspension system
G.V.W.(kg)
17000
Curb weight (kg)
10350/10700
Tire
275/70R22.5
Normal rated power（kW/r/min）
135
Bulletin seats
18-32
Wheel track（mm）
2085/1860
Energy storage system
Lithium iron phosphate (LifePO) battery / CATL

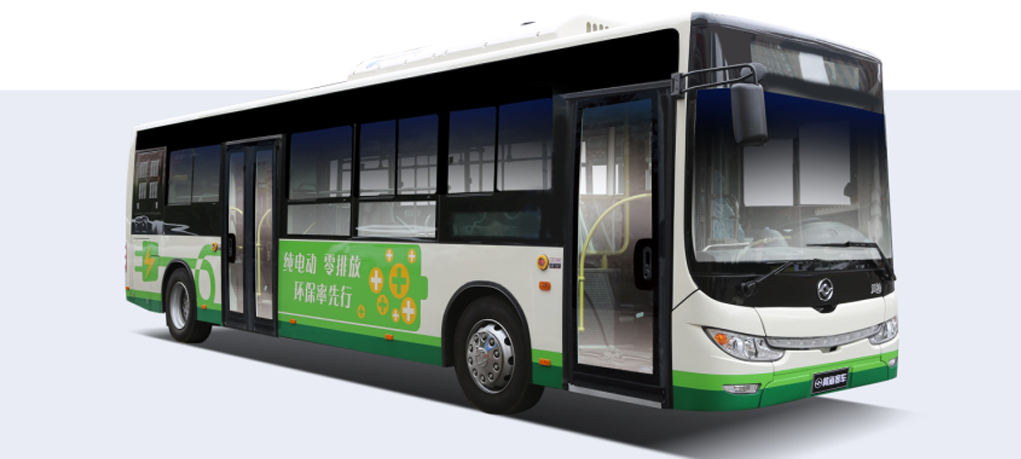

DD6109EV7/EV9/EV10
Electric City Coach

DD6109EV7/EV9/EV10

Dimension（mm）
10490×2500×3430/3580
Wheelbase（mm）
6100
Approach/departure angle(°)
8/11
Rated seats
92, 84/20-32
Max. speed （km/h）
69
Battery capacity
202.9kWh (EV7) / 267kWh (EV9) / 303.6+267kWh (EV10) — range 380/480/560km
Motor model
lvkon (EV7/EV9) / Auto Ekontrol (EV10)
Suspension
Air Suspension system
G.V.W.(kg)
17000
Curb weight (kg)
10500/10900
Tire
275/70R22.5

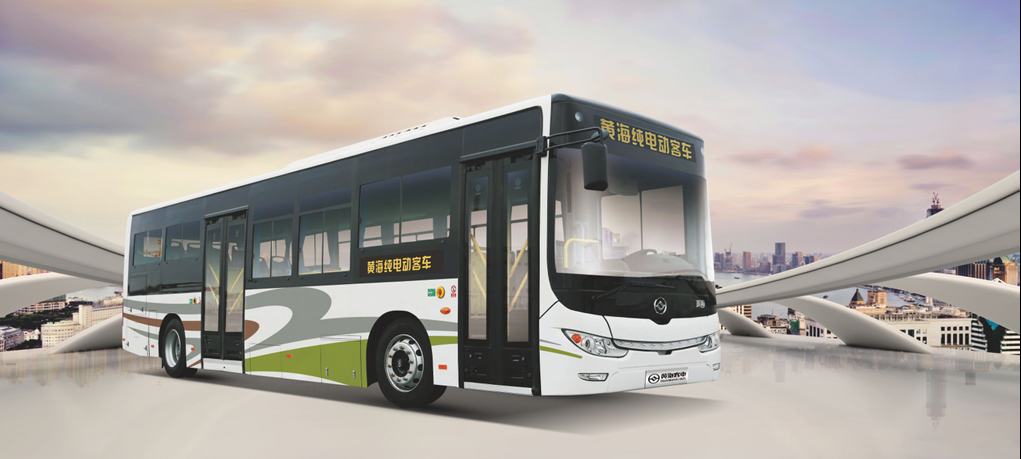

DD6109EV13/EV14
Electric City Coach

DD6109EV13/EV14

L×W×H (mm)
10500×2500×3070/3110/3260/3300
Wheelbase (mm)
5800
Approach/Departure (°)
9/11
Rated Seats
78/18–39 or 97/18–39
Max Speed (km/h)
69
GVW (kg)
18000
Curb Weight (kg)
10600/11000/11400
Battery (kWh)
255.4, 281.9
Drive Motor
lvkon TZ410XS-LKM2504
Suspension
Leaf spring / Air spring
Tyre
275/70R22.5

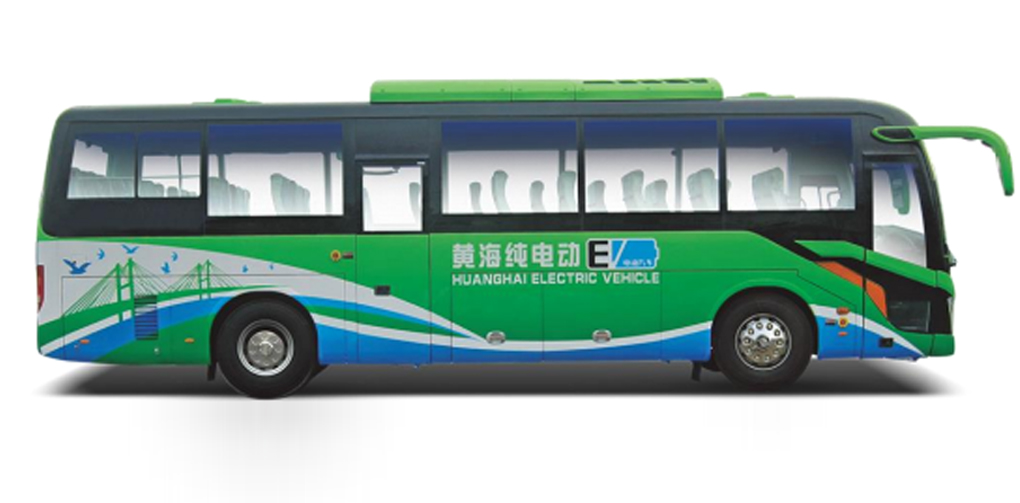

DD6110KEV4
Electric City Bus

DD6110KEV4

Dimension（mm）
10840×2500×3430/3580
Wheelbase（mm）
5820
Approach/departure angle(°)
10/10
Rated seats
24-52/24-48
Max. speed （km/h）
85
Battery capacity
138.24 kWh (576V 240Ah)
Drive motor model
Jing-Jin TZ460XSF02
Suspension system
Air Suspension system or Leaf spring
G.V.W.(kg)
16500
Curb weight (kg)
11500/11850
Maximum torque（N.m/r/min）
2935
Tire
295/80R22.5
Normal rated power（kW/r/min）
142
Bulletin seats
24-52/24-48
Wheel track（mm）
2085/1860
Energy storage system
Lithium iron phosphate (LifePO) battery / CATL

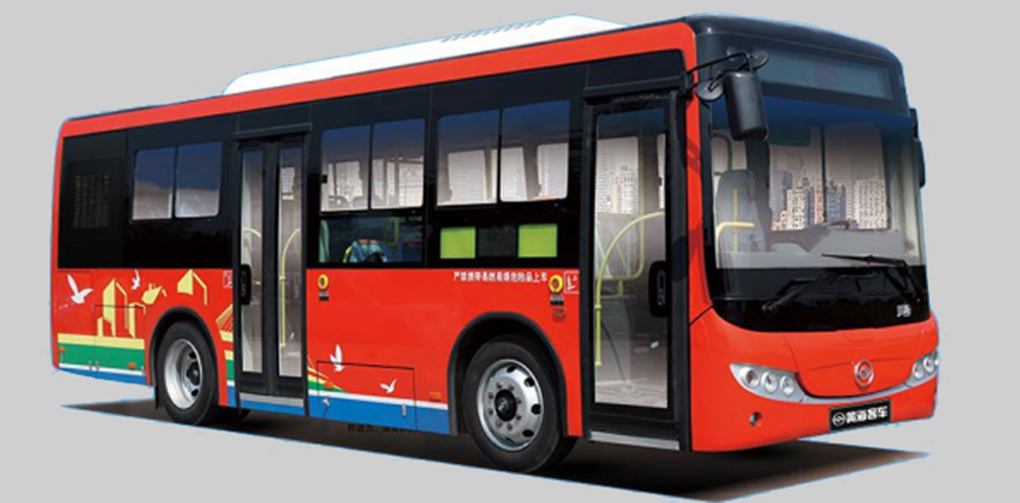

DD6851EV4
Electric City Bus

DD6851EV4

Dimension（mm）
8540×2430×3070/3170
Wheelbase（mm）
4000
Wheel track（mm）
2085/1820
Approach/departure angle(°)
7/7
Rated seats
82/78
Max. speed （km/h）
69
Power batteries
Lithium iron phosphate (LifePO) battery / CATL
Battery capacity
92.9kWh（528V 176Ah）
Drive motor model
Jing-JinTZ460XSE01
Suspension system
Leaf spring
G.V.W.(kg)
13500
Curb weight (kg)
8100/8400
Tire
255/70R22.5
Normal rated power（kW/r/min）
103
Bulletin seats
16-30
Maximum torque（N.m/r/min)
2100
DD6851EV5
Electric City Coach

DD6851EV5

Dimension（mm）
8540×2430×3070/3170
Wheelbase（mm）
4000
Approach/departure angle(°)
7/7
Rated seats
78, 82/16-30
Max. speed （km/h）
69
Battery capacity
133.5, 151.8kWh (Lithium iron phosphate (LiFePO))
Motor model
Jing-Jin
Suspension
Leaf spring
G.V.W.(kg)
13500
Curb weight (kg)
8100/8400
Tire
255/70R22.5

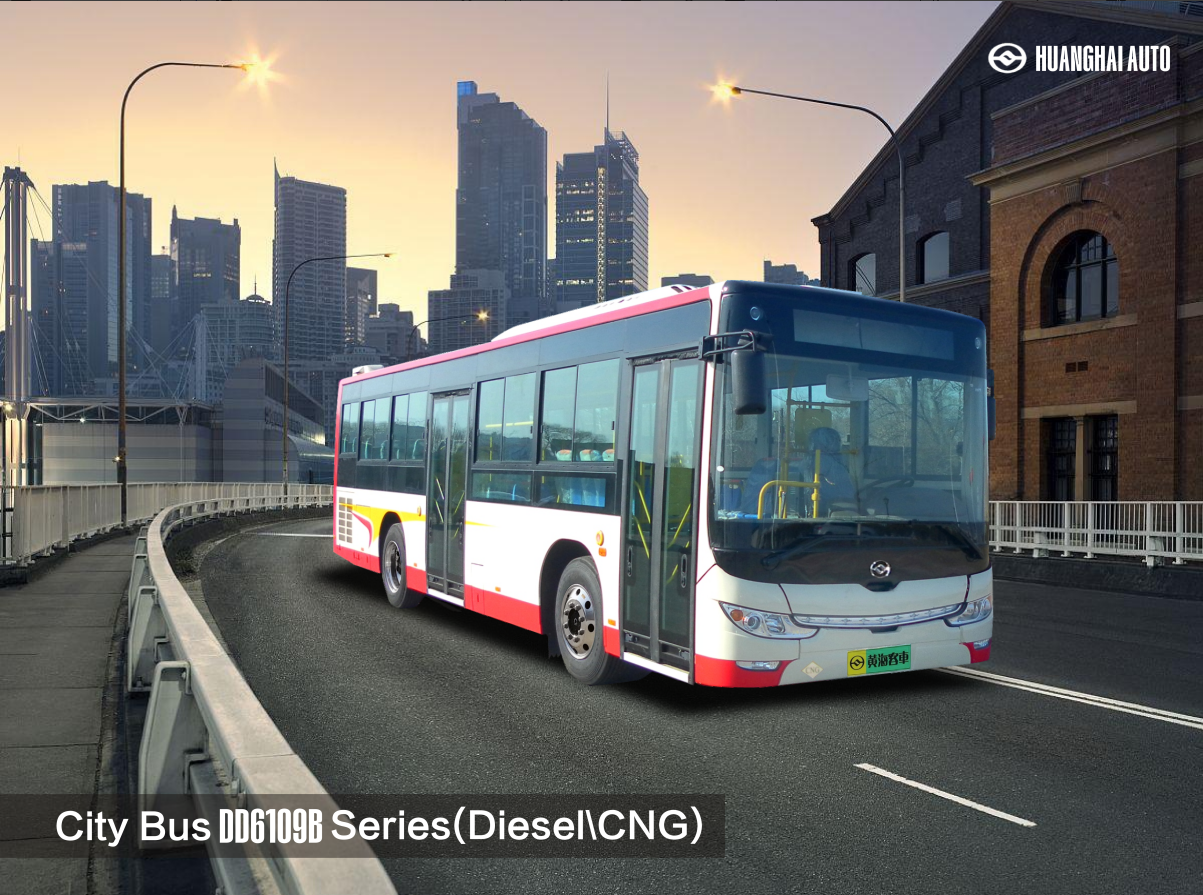

DD6109B
City Bus

DD6109B

L×W×H (mm)
10490×2482×3220/3380
Rated Capacity (persons)
95/18-40 · 90/18-40
Engine
YC6J245-50 / YUCHAI
Power (kW/r/min)
180/2500
Torque (N·m/r/min)
850/1200–1700
Curb Weight (kg)
10000/10400
GVW (kg)
16500
Body Structure
Monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
5000
Approach/Departure (°)
7/7
Suspension
3/4, 4/5, –/–
Tyre
11R22.5, 275/70R22.5
Fuel Tank (L)
200
Max Speed (km/h)
69

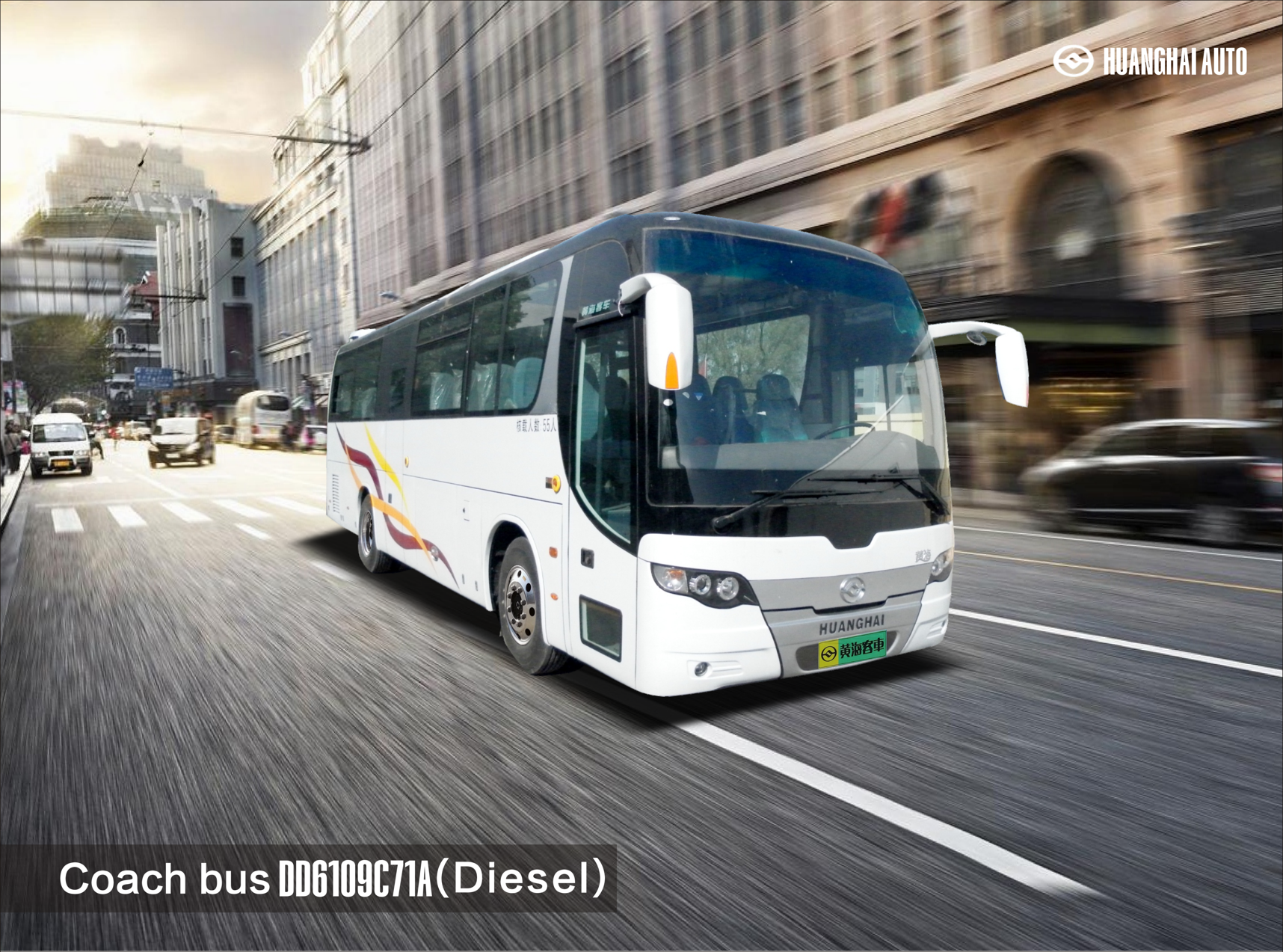

DD6109C71A
Coach

DD6109C71A

L×W×H (mm)
10490×2495×3415/3485
Rated Capacity (persons)
24–48
Engine
YC6J245-52 / YUCHAI
Power (kW/r/min)
180/2300
Torque (N·m/r/min)
950/1200–1800
Curb Weight (kg)
10400/10800/11300
GVW (kg)
15000
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
5050
Approach/Departure (°)
9/9
Suspension
9/12
Tyre
11R22.5
Fuel Tank (L)
200
Max Speed (km/h)
100

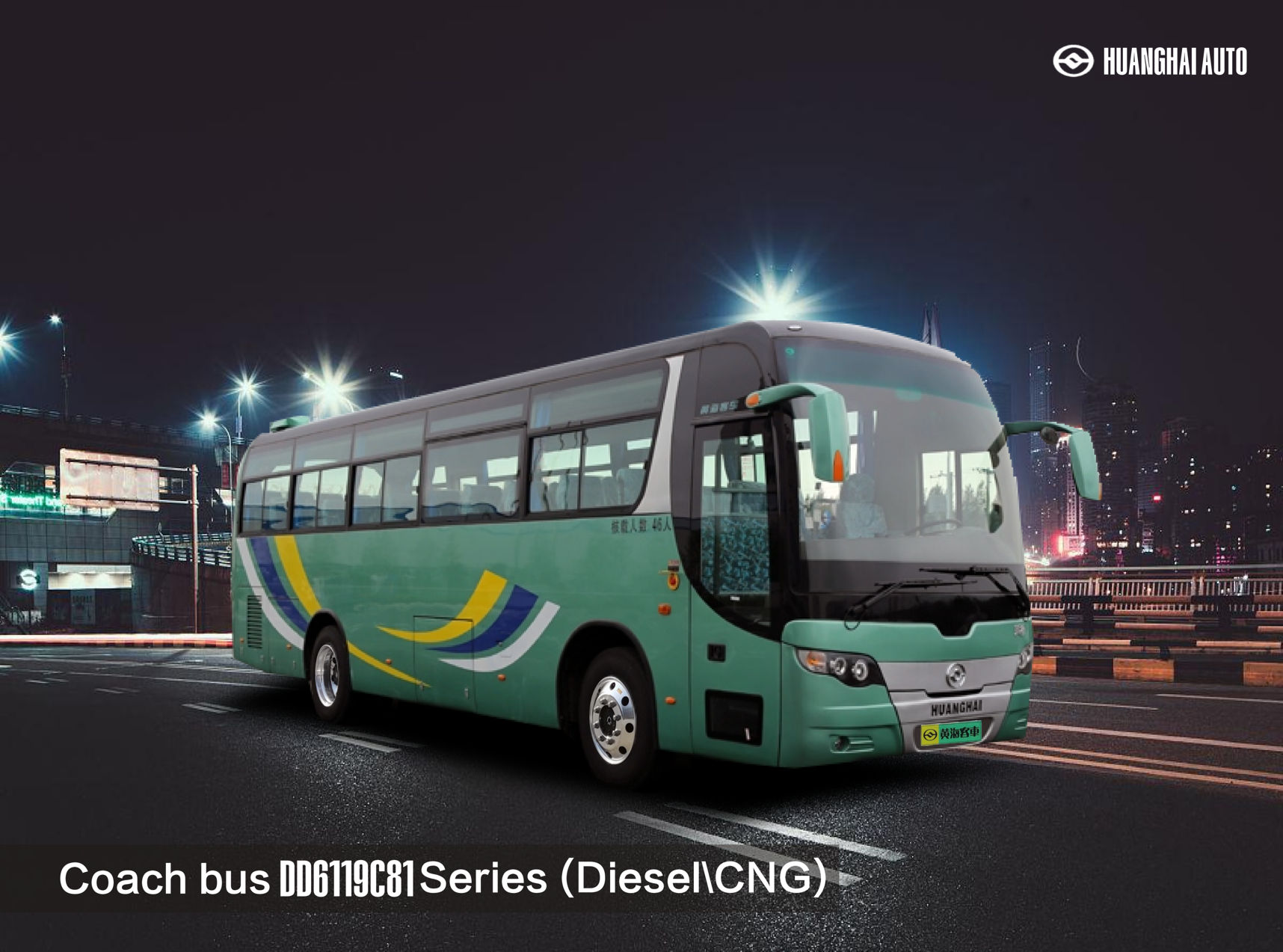

DD6119C81
Coach

DD6119C81

L×W×H (mm)
10990×2500×3310/3360/3450/3500
Rated Capacity (persons)
24–52
Engine
YCK08280-60
Power (kW/r/min)
206/2200
Torque (N·m/r/min)
1000/1200–1700
Curb Weight (kg)
10500/11000/11600/12000
GVW (kg)
16600
Body Structure
Semi-monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
5500
Approach/Departure (°)
9/9
Suspension
Leaf spring
Tyre
11R22.5
Fuel Tank (L)
200
Max Speed (km/h)
100

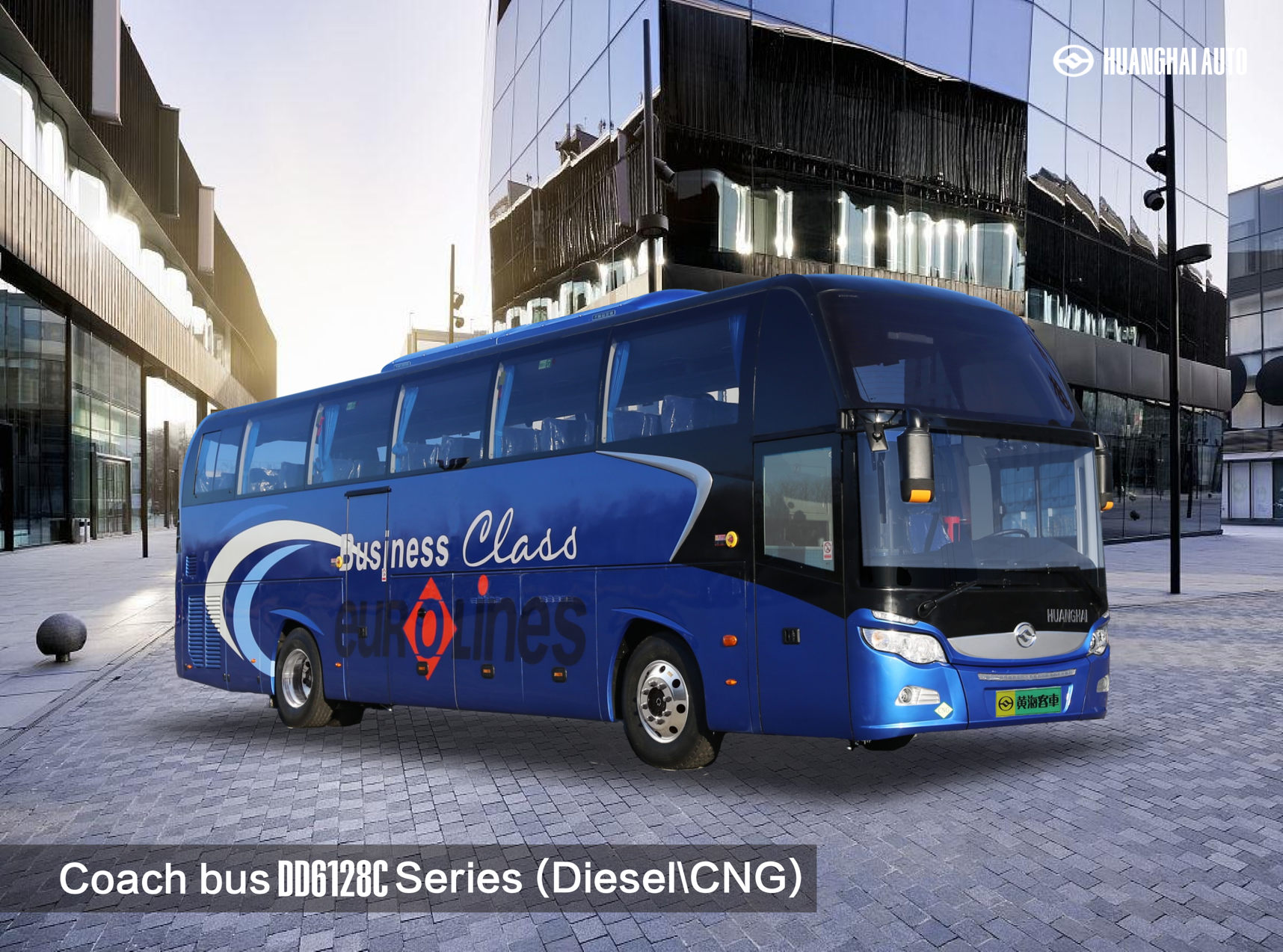

DD6128C
Coach

DD6128C

L×W×H (mm)
11985×2500×3815
Rated Capacity (persons)
24–56
Engine
YC6MK340-50 / YUCHAI
Power (kW/r/min)
250/1900
Torque (N·m/r/min)
1500/1100–1500
Curb Weight (kg)
13700
GVW (kg)
18000
Body Structure
Monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
6000
Approach/Departure (°)
9/9
Suspension
–/–
Tyre
295/80R22.5
Fuel Tank (L)
260
Max Speed (km/h)
100

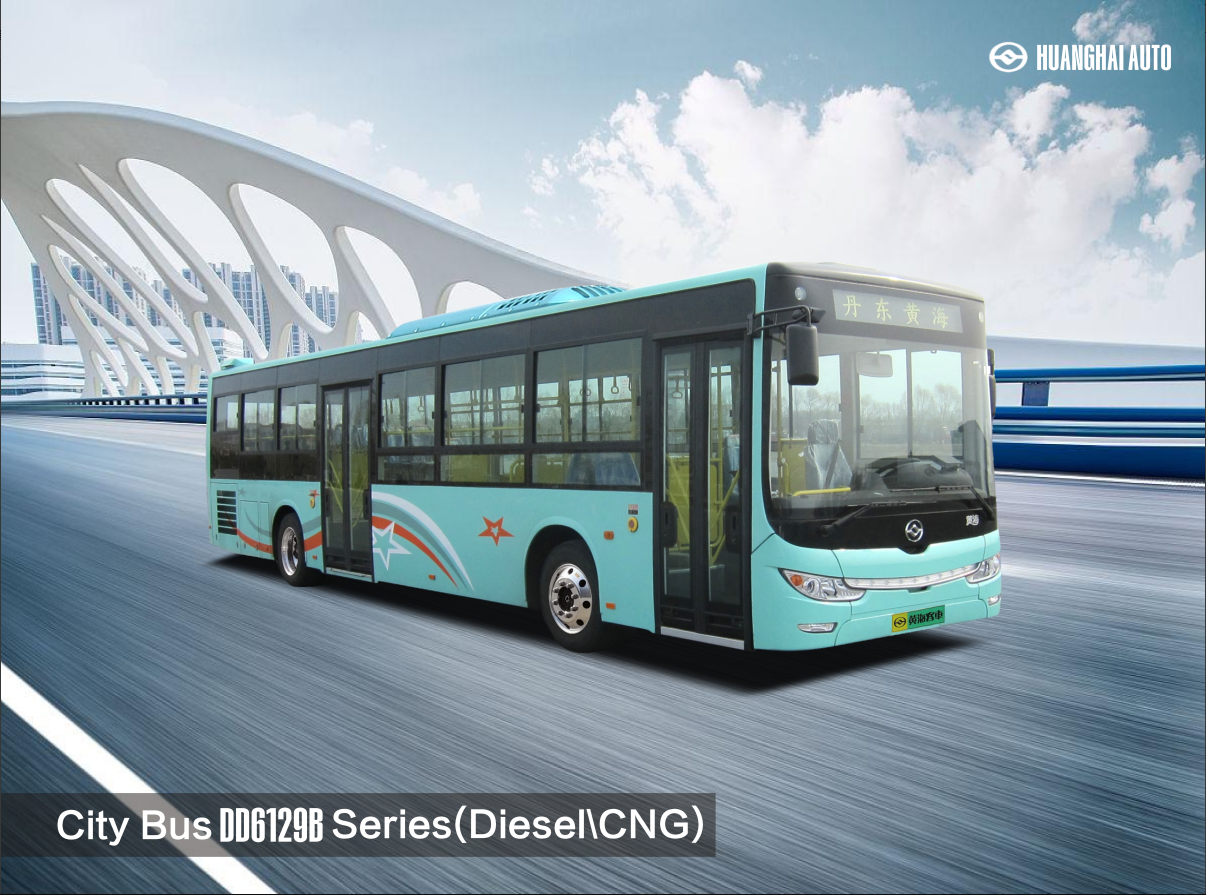

DD6129B
City Bus

DD6129B

L×W×H (mm)
12000×2532×3180/3300
Rated Capacity (persons)
101/18-46 · 107/18-46
Engine
YC6L260-50 / YUCHAI
Power (kW/r/min)
191/2200
Torque (N·m/r/min)
1030/1200–1700
Curb Weight (kg)
10800/11500
GVW (kg)
18000
Body Structure
Monocoque
Anti-corrosion
Cathodic electrophoresis
Power Position
Rear longitudinal
Wheelbase (mm)
6000
Approach/Departure (°)
7/7
Suspension
4/4, 5, –/–
Tyre
295/80R22.5, 275/70R22.5, 11R22.5
Fuel Tank (L)
200
Max Speed (km/h)
69

Special Vehicles

Purpose-Built. Mission-Ready.

Special Pickups

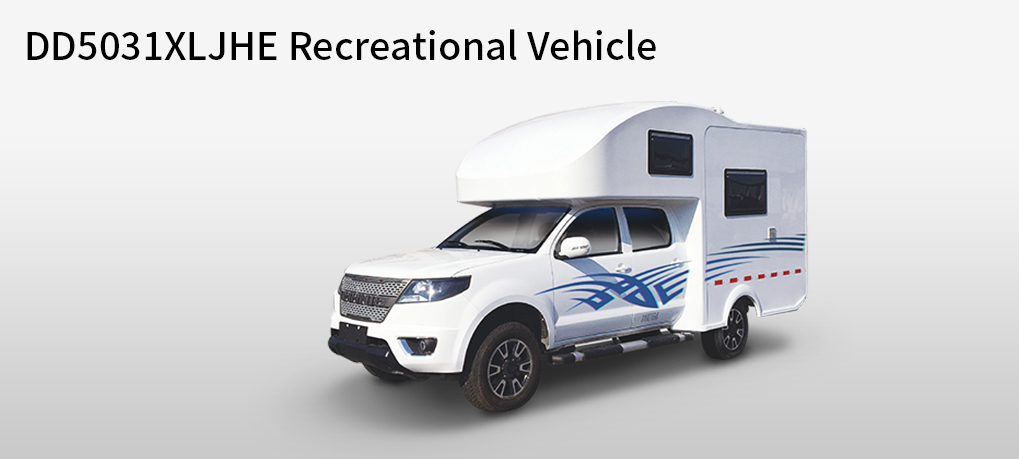

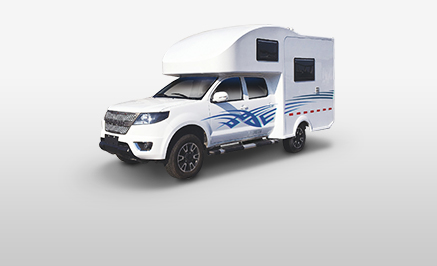

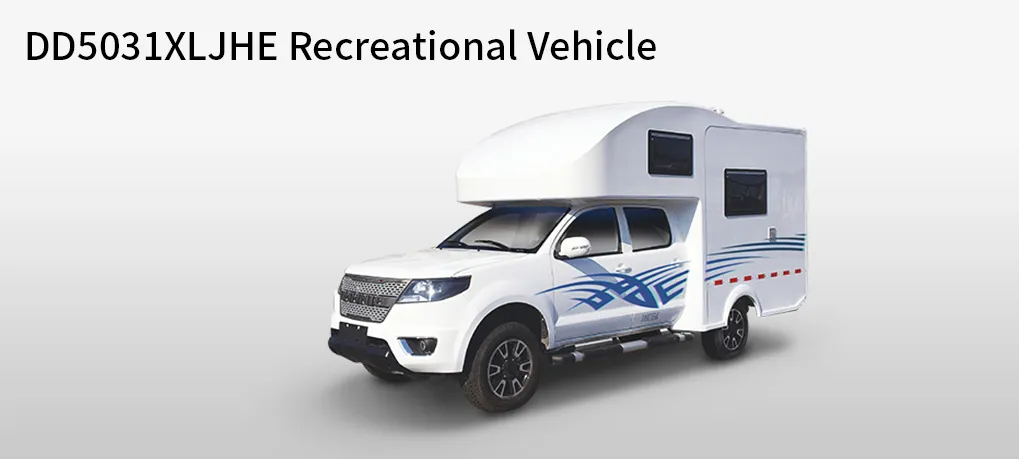

DD5031XLJHE Recreational Vehicle
Special Vehicle

DD5031XLJHE Recreational Vehicle

L×W×H (mm)
5995x2200x3050,2800
Cargo Compartment (mm)
—
GVW (kg)
3195
Curb Mass (kg)
2850
Rated Load (kg)
—
Wheelbase (mm)
3405
Number of Axles
2
ABS
—
Approach / Departure (°)
32/17.5
Front & Rear Overhang (mm)
895/1695
Max Speed (km/h)
130
Tire Specification
265/65R17
Tire Count
4
Front Track
1538,1548
Rear Track
1538,1548
Oil Consumption (L/100km)
—

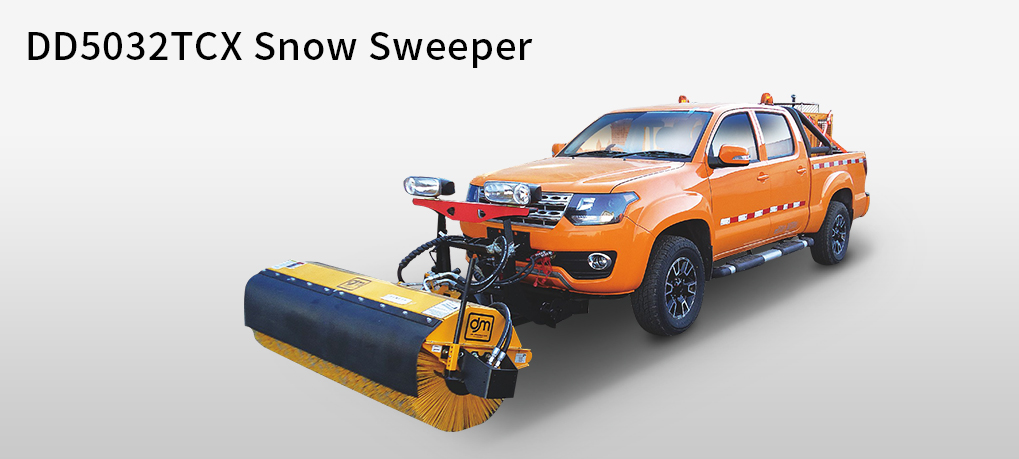

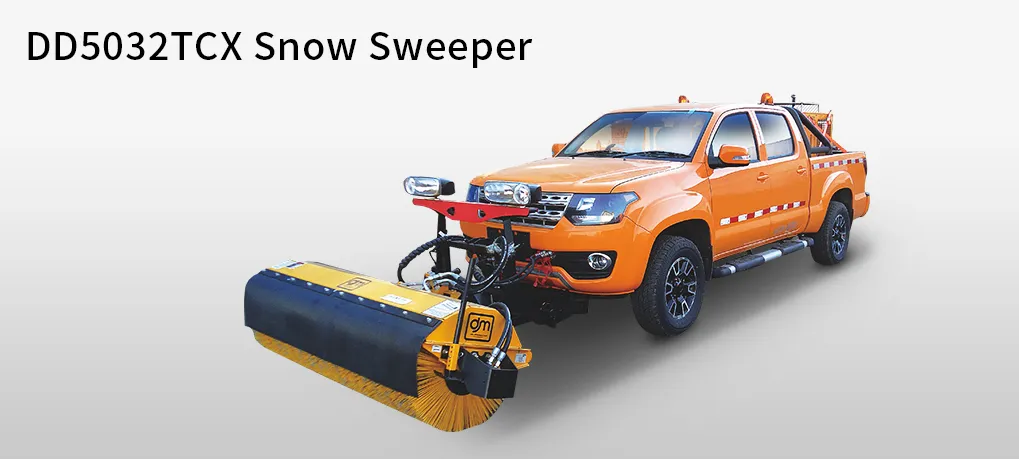

DD5032TCX Snowplow
Special Vehicle

DD5032TCX Snowplow

L×W×H (mm)
7130,6690,5610x1840x1990
Cargo Compartment (mm)
—
GVW (kg)
2735
Curb Mass (kg)
—
Rated Load (kg)
—
Wheelbase (mm)
3405
Number of Axles
2
ABS
—
Approach / Departure (°)
32/26
Front & Rear Overhang (mm)
945/1260
Max Speed (km/h)
150
Tire Specification
245/65R17,265/65R17
Tire Count
4
Front Track
1538,1548
Rear Track
1538,1548
Oil Consumption (L/100km)
—

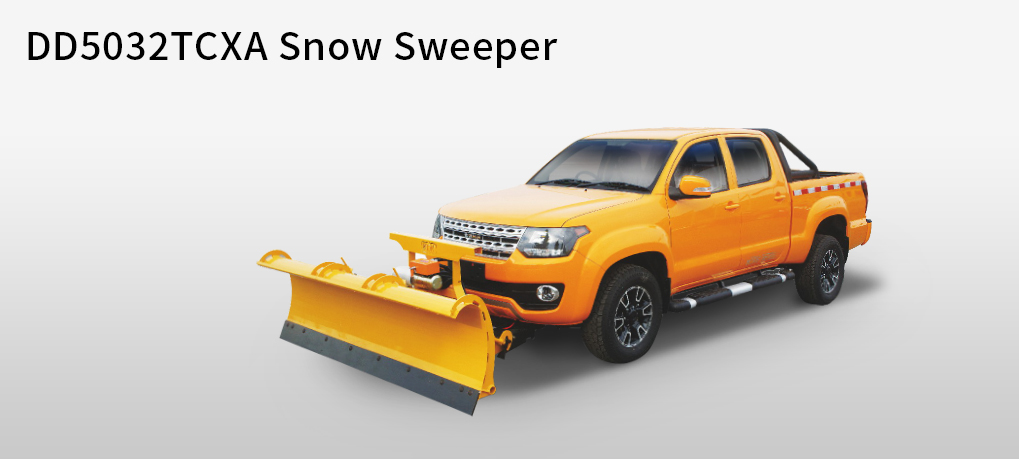

DD5032TCXA Snowplow For work
Special Vehicle

DD5032TCXA Snowplow For work

L×W×H (mm)
7580,7250,6650,6540,5610x1840x1960,1840
Cargo Compartment (mm)
—
GVW (kg)
2735
Curb Mass (kg)
2360
Rated Load (kg)
50
Wheelbase (mm)
3405
Number of Axles
2
ABS
—
Approach / Departure (°)
13/26
Front & Rear Overhang (mm)
945/1260
Max Speed (km/h)
150
Tire Specification
245/65R17,265/65R17
Tire Count
4
Front Track
1538,1548
Rear Track
1538,1548
Oil Consumption (L/100km)
—

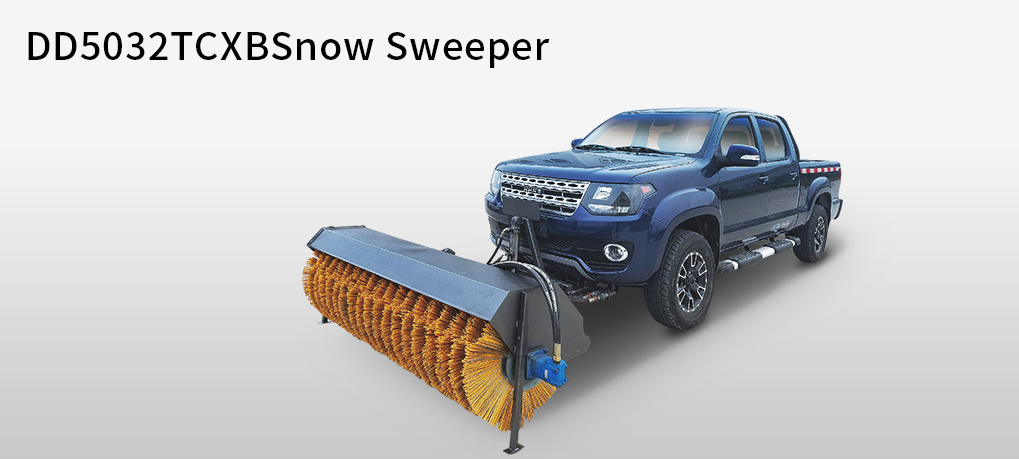

DD5032TCXB Snowplow
Special Vehicle

DD5032TCXB Snowplow

L×W×H (mm)
7070,5740 x1840x1830,1840
Cargo Compartment (mm)
—
GVW (kg)
2795
Curb Mass (kg)
—
Rated Load (kg)
50
Wheelbase (mm)
3405
Number of Axles
2
ABS
—
Approach / Departure (°)
32/26
Front & Rear Overhang (mm)
1075/1260
Max Speed (km/h)
150
Tire Specification
245/65R17,265/65R17
Tire Count
4
Front Track
1538,1548
Rear Track
1538,1548
Oil Consumption (L/100km)
—

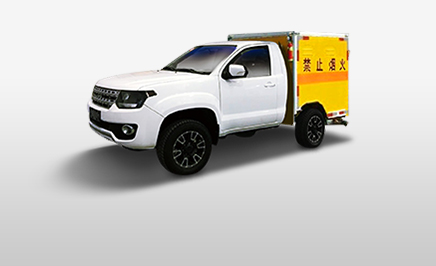

Blasting Equipment Transporter
Special Vehicle

Blasting Equipment Transporter

Detailed specifications available on request.

Contact Us for More Details →

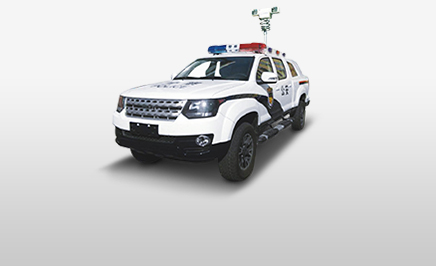

Police Pickup
Special Vehicle

Police Pickup

Detailed specifications available on request.

Contact Us for More Details →
Refrigerated Pickup
Special Vehicle

Refrigerated Pickup

Detailed specifications available on request.

Contact Us for More Details →

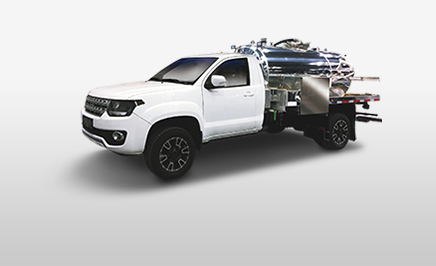

Sewer Suction Pickup
Special Vehicle

Sewer Suction Pickup

Detailed specifications available on request.

Contact Us for More Details →

Sanitation Vehicles

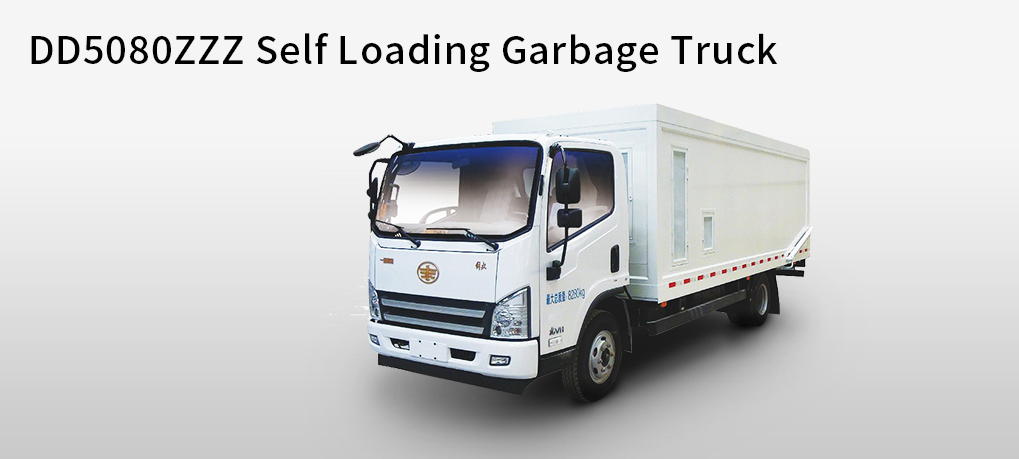

DD5080ZZZ Self Loading Garbage Truck
Sanitation Vehicle

DD5080ZZZ Self Loading Garbage Truck

L×W×H (mm)
7655x2340x2750
Cargo Compartment (mm)
—
GVW (kg)
8280
Curb Mass (kg)
6610
Rated Load (kg)
1475
Wheelbase (mm)
4200
Number of Axles
2
ABS
—
Approach / Departure (°)
21/12
Front & Rear Overhang (mm)
1150/2305
Max Speed (km/h)
90
Tire Specification
7.50-16,7.50R16,8.25-16,8.25R16
Tire Count
6
Front Track
1640,1665
Rear Track
1540,1590
Oil Consumption (L/100km)
17.2,17.7

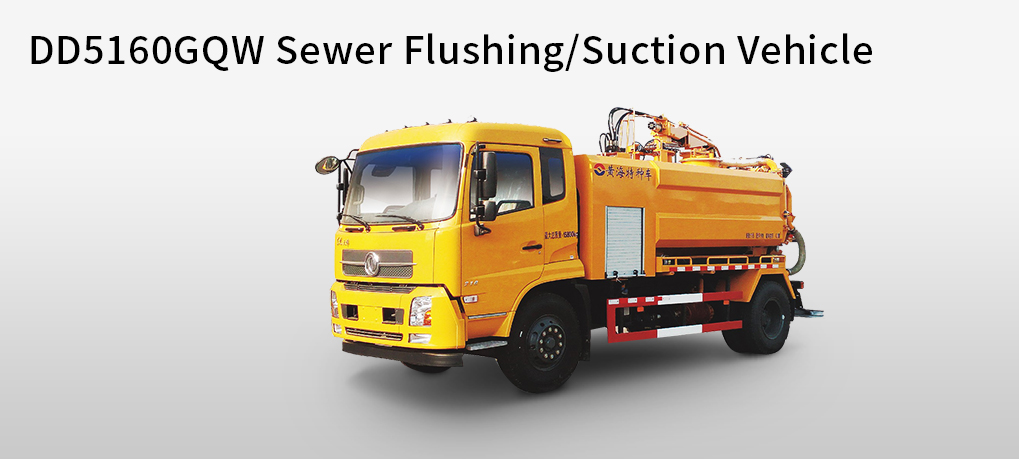

DD5160GQW Sewer Flushing/Suction Vehicle
Sanitation Vehicle

DD5160GQW Sewer Flushing/Suction Vehicle

L×W×H (mm)
7745x2460x3480
Cargo Compartment (mm)
—
GVW (kg)
15800
Curb Mass (kg)
10505
Rated Load (kg)
5100
Wheelbase (mm)
3800,4200,4500,4700,5000
Number of Axles
2
ABS
have
Approach / Departure (°)
20/10
Front & Rear Overhang (mm)
1430/2115
Max Speed (km/h)
80
Tire Count
6
Front Track
1880,1900,1920
Rear Track
1800,1860,1820
Oil Consumption (L/100km)
—
Emission Standard
—
DD5160TCXZE Snowplow
Sanitation Vehicle

DD5160TCXZE Snowplow

L×W×H (mm)
10047,8110x2500x2905
Cargo Compartment (mm)
—
GVW (kg)
16000
Curb Mass (kg)
9000
Rated Load (kg)
6870
Wheelbase (mm)
4700
Number of Axles
2
ABS
have
Approach / Departure (°)
13.5/12
Front & Rear Overhang (mm)
1370/2040
Max Speed (km/h)
82
Tire Specification
11.00-20,11.00R20,12,00-20,12.00R20 18PR
Tire Count
4
Front Track
2035
Rear Track
1850
Oil Consumption (L/100km)
—
Emission Standard
—

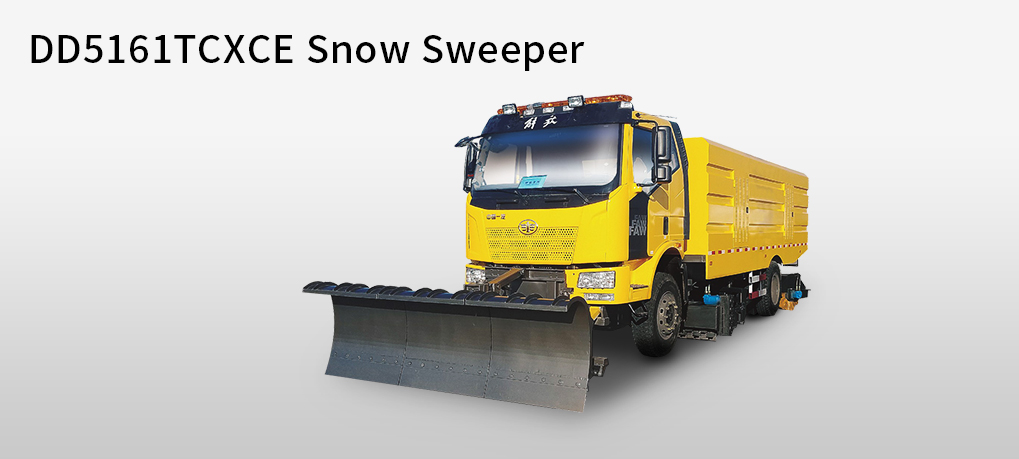

DD5161TCXCE Snowplow
Sanitation Vehicle

DD5161TCXCE Snowplow

L×W×H (mm)
11150,9460x2500x3060
Cargo Compartment (mm)
—
GVW (kg)
16000
Curb Mass (kg)
12150
Rated Load (kg)
3655
Wheelbase (mm)
5300,5000,4700,4500
Number of Axles
2
ABS
have
Approach / Departure (°)
11/10
Front & Rear Overhang (mm)
1490/2970
Max Speed (km/h)
100
Tire Specification
10.00-20,10.00R20r11R22.5,11.00R20
Tire Count
6
Front Track
1914,1928
Rear Track
1847,1860,1890
Oil Consumption (L/100km)
—
Emission Standard
—

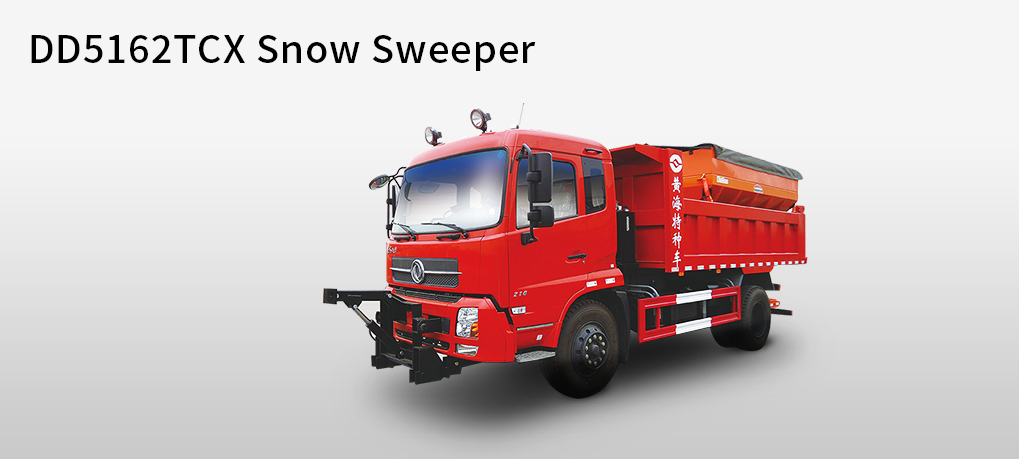

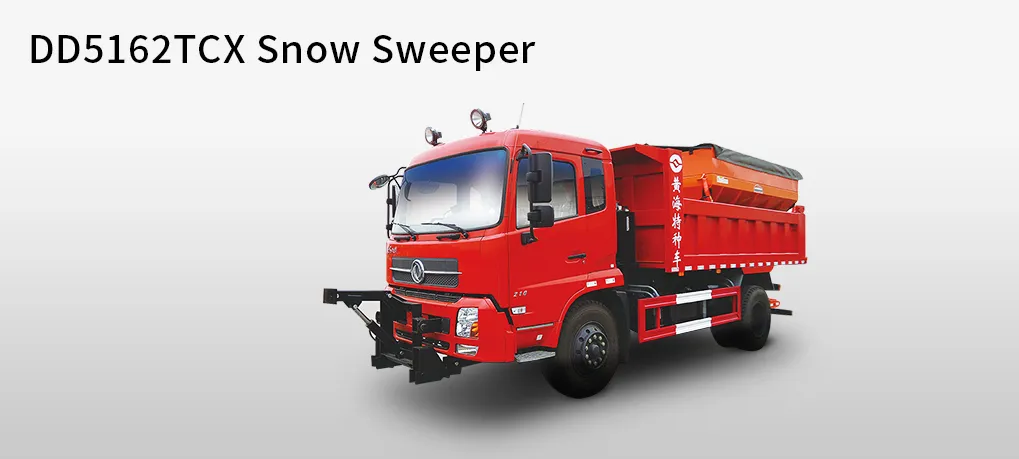

DD5162TCX Snowplow
Sanitation Vehicle

DD5162TCX Snowplow

L×W×H (mm)
9935,9485,859 x2496x3350
Cargo Compartment (mm)
—
GVW (kg)
15800
Curb Mass (kg)
9940
Rated Load (kg)
5665
Wheelbase (mm)
3800,4200,4500,4700,5000
Number of Axles
2
ABS
have
Approach / Departure (°)
12/9
Front & Rear Overhang (mm)
2330/2465
Max Speed (km/h)
90
Tire Count
6
Front Track
1880,1900,1920
Rear Track
1800,1860,1820
Oil Consumption (L/100km)
—
Emission Standard
—
DD5163TCX Snowplow
Sanitation Vehicle

DD5163TCX Snowplow

L×W×H (mm)
8460,9235,10150,10357 X 2500 X 2850
Cargo Compartment (mm)
—
GVW (kg)
15600
Curb Mass (kg)
7600
Rated Load (kg)
7805
Wheelbase (mm)
5000.4700,4500,5300
Number of Axles
2
ABS
have
Approach / Departure (°)
11/10
Front & Rear Overhang (mm)
1490/2470,2265/2470
Max Speed (km/h)
90
Tire Count
6
Front Track
1800,1914
Rear Track
1800,1847
Oil Consumption (L/100km)
—
Emission Standard
—

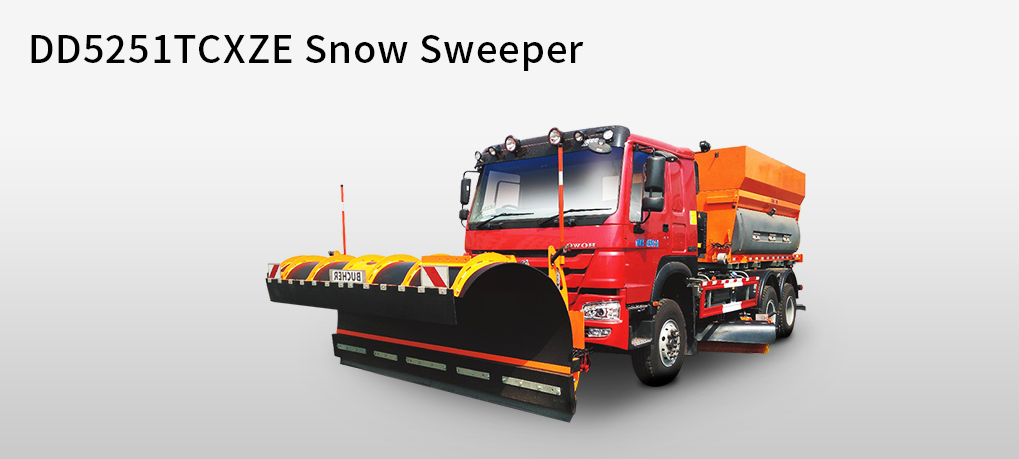

DD5251TCXZE Snowplow
Sanitation Vehicle

DD5251TCXZE Snowplow

L×W×H (mm)
12085,11905,10085,9905X2496x3490,3150
Cargo Compartment (mm)
—
GVW (kg)
25000
Curb Mass (kg)
15100
Rated Load (kg)
9770
Wheelbase (mm)
4125+1350
Number of Axles
3
ABS
have
Approach / Departure (°)
15/9
Front & Rear Overhang (mm)
1830/2780,1830/2600
Max Speed (km/h)
82
Tire Specification
12.00R2016PR,11.00R20,12.00-2018PR,11.00-20
Tire Count
10
Front Track
2022,2041
Rear Track
1830/1830
Oil Consumption (L/100km)
—
Emission Standard
GB17691-2005 guo V .GB3847-2005

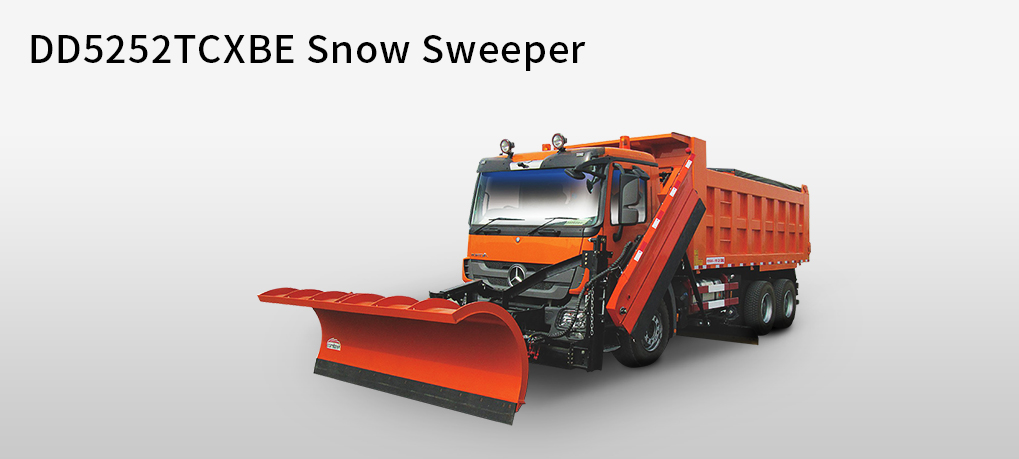

DD5252TCXBE Snowplow
Sanitation Vehicle

DD5252TCXBE Snowplow

L×W×H (mm)
12130,12090,10790 x 2550 x 3370
Cargo Compartment (mm)
—
GVW (kg)
25000
Curb Mass (kg)
18000
Rated Load (kg)
6870
Wheelbase (mm)
4500+1350
Number of Axles
3
ABS
have
Approach / Departure (°)
13/17
Front & Rear Overhang (mm)
2810/2130
Max Speed (km/h)
90
Tire Specification
385/65R22.5/315/80R22.5
Tire Count
10
Front Track
2036
Rear Track
1804/1804
Oil Consumption (L/100km)
—
Emission Standard
GB17691-2005 guo V .GB3847-2005

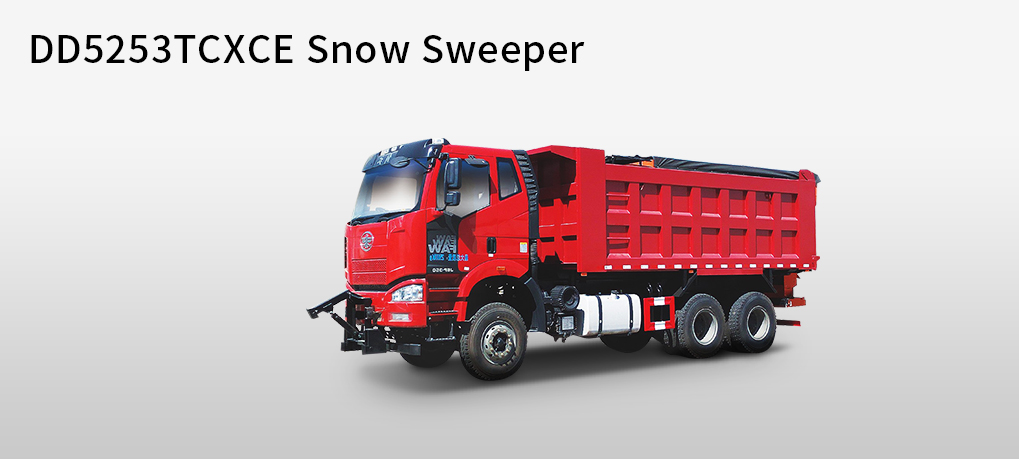

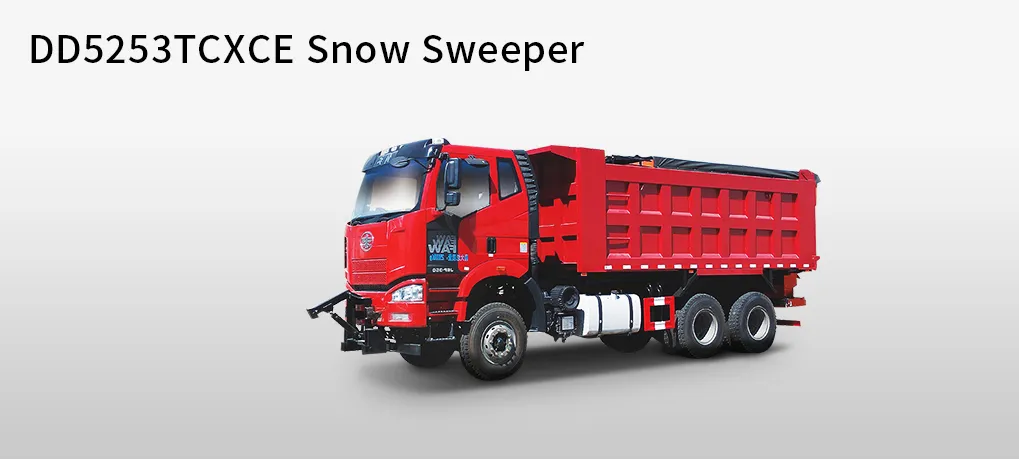

DD5253TCXCE Snowplow
Sanitation Vehicle

DD5253TCXCE Snowplow

L×W×H (mm)
11535,11415,10235,9870 X 2500x3280,3430
Cargo Compartment (mm)
—
GVW (kg)
25000
Curb Mass (kg)
16100
Rated Load (kg)
8705,8770
Wheelbase (mm)
4050+1350
Number of Axles
3
ABS
have
Approach / Departure (°)
11/19
Front & Rear Overhang (mm)
2335/2500,1730/2740
Max Speed (km/h)
79
Tire Specification
12R22.5,11.00R20,11,00-20,12.00R20 16PR,12.00-20 18PR
Tire Count
10
Front Track
2020
Rear Track
1847/1847,1878/1878
Oil Consumption (L/100km)
—
Emission Standard
GB17691-2005 guo V .GB3847-2005

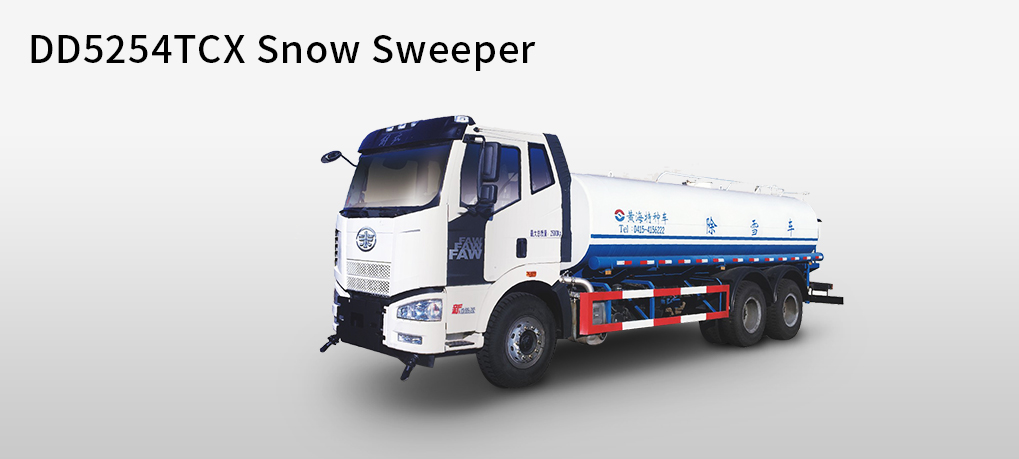

DD5254TCX Snowplow
Sanitation Vehicle

DD5254TCX Snowplow

L×W×H (mm)
12087,11880,10965,10300 x 2500x2990
Cargo Compartment (mm)
—
GVW (kg)
25000
Curb Mass (kg)
11700
Rated Load (kg)
13170,13105
Wheelbase (mm)
4800+1350,4600+1350,4350 +1350,4300+1350
Number of Axles
3
ABS
have
Approach / Departure (°)
11/10
Front & Rear Overhang (mm)
1600/2550,2265/2550
Max Speed (km/h)
90
Tire Specification
11.00R20,12R22.5
Tire Count
10
Front Track
1950
Rear Track
1847/1847
Oil Consumption (L/100km)
—
Emission Standard
GB17691-2005 guo V .GB3847-2005

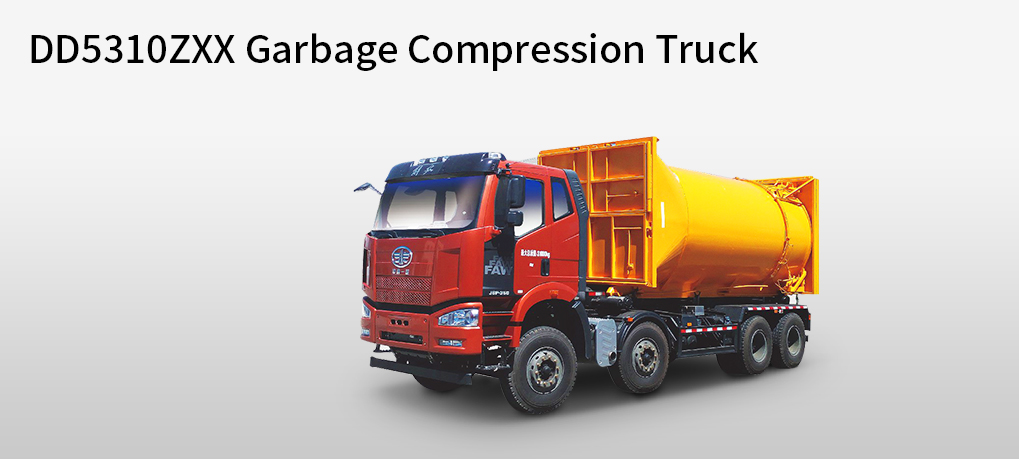

DD5310ZXXGarbage Compression Truck
Sanitation Vehicle

DD5310ZXXGarbage Compression Truck

L×W×H (mm)
8987x2500x3100,3220
Cargo Compartment (mm)
—
GVW (kg)
31000
Curb Mass (kg)
13900
Rated Load (kg)
16905,16970
Wheelbase (mm)
2100+3200+1350
Number of Axles
4
ABS
have
Approach / Departure (°)
24/32
Front & Rear Overhang (mm)
1470/867
Max Speed (km/h)
79
Tire Specification
12R22.5,11.00R20,11.00-20,12.00R20 18PR,12.00-2018PR
Tire Count
12
Front Track
2020/2020,2048/2048
Rear Track
1847/1847,1878/1878
Oil Consumption (L/100km)
43.8
Emission Standard
GB17691-2005 guo V .GB3847-2005

Refrigerated Vehicles

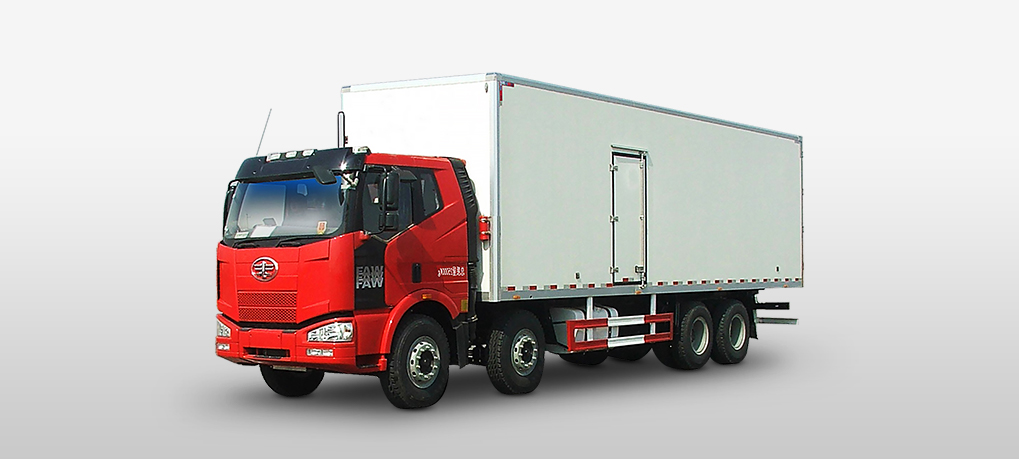

Refrigerated Pickup Model
Special Vehicle

Refrigerated Pickup Model

Detailed specifications available on request.

Contact Us for More Details →

Modified Vehicles

Custom-Built for Every Mission.

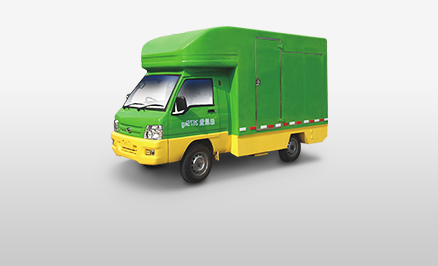

DD5030XSH Vending Van
Modified Vehicle

DD5030XSH Vending Van

Detailed specifications available on request.

Contact Us for More Details →
DD5031XLJSHE Recreational Vehicle
Modified Vehicle

DD5031XLJSHE Recreational Vehicle

Detailed specifications available on request.

Contact Us for More Details →

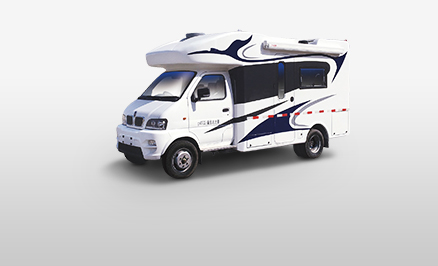

DD5032XLJA Recreational Vehicle
Modified Vehicle

DD5032XLJA Recreational Vehicle

Detailed specifications available on request.

Contact Us for More Details →

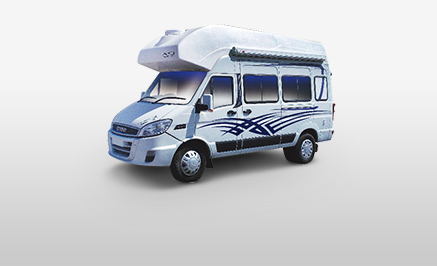

DD5042XLJB Recreational Vehicle
Modified Vehicle

DD5042XLJB Recreational Vehicle

Detailed specifications available on request.

Contact Us for More Details →

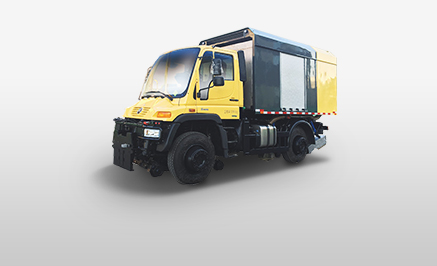

DD5120TXS Washing/Sweeper Vehicle
Modified Vehicle

DD5120TXS Washing/Sweeper Vehicle

Detailed specifications available on request.

Contact Us for More Details →

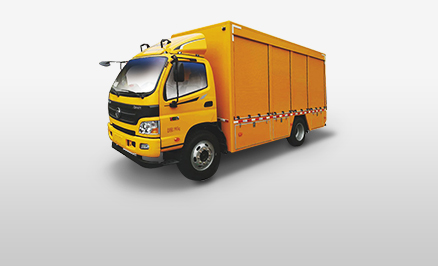

DD5121XGC Machineshop Truck
Modified Vehicle

DD5121XGC Machineshop Truck

Detailed specifications available on request.

Contact Us for More Details →

Cargo Vehicles

Heavy-Duty Haulage & Specialised Transport.

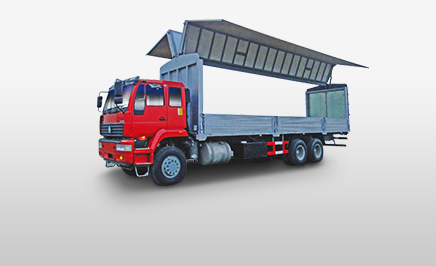

DD9320XYK Wingspan Trailer
Cargo Vehicle

DD9320XYK Wingspan Trailer

Detailed specifications available on request.

Contact Us for More Details →

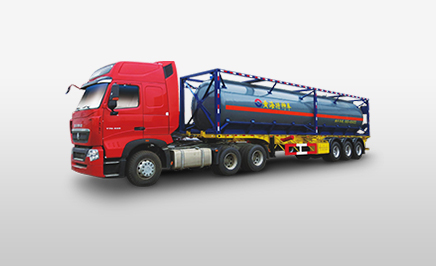

DD9400TWY Dangerous Cargo Tank Container
Cargo Vehicle

DD9400TWY Dangerous Cargo Tank Container

Detailed specifications available on request.

Contact Us for More Details →

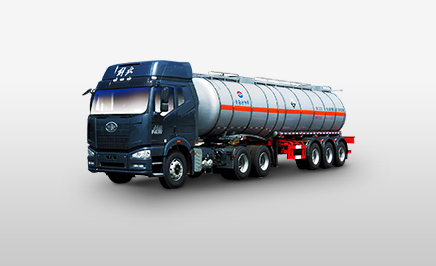

DD9407GYY Fuel Transportation Trailer
Cargo Vehicle

DD9407GYY Fuel Transportation Trailer

Detailed specifications available on request.

Contact Us for More Details →

Partner with SG Automobile

Hermi Group is the authorised partner for SG Automobile (Huanghai), providing full-service procurement, logistics, and technical support for fleet deliveries worldwide.

Enquire About SG Automobile
